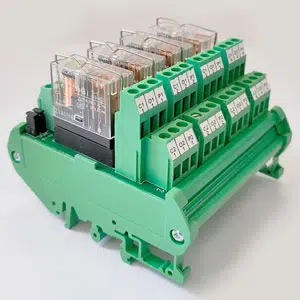

8 Channel 12V Relay Module: AE-08-012D-2-B-C (G2R)
The Technical Specifications of 8 Channel 12V Relay Module AE-08-012D-2-B-C (G2R):
- 8 Channel 24V OMRON G2R Relay Module
- 5A DPDT 8 Channel Relay Board with LED Indication
- DIN Rail Mountable 8 Channel Relay with Freewheeling Diode
- Universal 8-Channel Relay Module for Automation Control
- High Current 24V Relay Board with 8 DPDT Channels
- Low Power Consumption: Approx. 530mW
8 Channel 12V Relay Module: AE-08-012D-2-B-C (G2R) Technical Specifications:
| Board Manufactures | Agility |
| Channels | 8 |
| Coil Voltage | 12VDC |
| Switching Current | 5A at 30VDC/250VAC |
| Contact Type 1C/O SPDT | 2C/O DPDT |
| Relay Make | OMRON G2R Series |
| Relay Actuation | LED Indication |
| Relay Coil Protection | Freewheeling Diode |
| Mounting | Universal DIN Rail |
| Input indication | 3 mm green LED for input status |
| Power consumption | Approx. 530mW |
| Coil resistance | 275Ohms |
| Rated coil current | 43.6mA |
| Must operate voltage | 80% max. of rated voltage |
| Must release voltage | 30% max. of rated voltage |
| Contact material | Ag-alloy (Cd free) |
| Maximum switching voltage | 380V AC, 125V DC |
| Contact resistance | 50mOhm max. |
| Operate time | 15 ms max. |
| Release time | DC: 5 ms max. & AC: 10 ms max. |
| Insulation resistance | 1000 M Ohm min |
| Maximum mechanical operating frequency | 18000 operation/hour |
| Maximum electrical operating frequency | 1800 operation/hour (under rated load) |
| Maximum voltage | 140% at 23°C |
| Ambient operating temperature | 0°C to 50°C |
| Housing material | PVC/V0 Grade, Phoenix Contact or equivalent |
| Housing color | Green |
| Conformal coating | Insulate, protect, and seal electronic parts, available on request |
| RoHS compliant | All the components used including PCBs are RoHS approved |
| Terminals | PCB Terminals Screw |
Are you looking for an Agility 8 Channel 12V Relay Module AE-08-012D-2-B-C (G2R)? This 8 channels, operates at a 24VDC coil voltage, and handles a switching current of 5A at 30VDC/250VAC. Utilizing OMRON G2R Series relays with a 2C/O DPDT contact type, it includes a freewheeling diode for relay coil protection and LED indication for relay actuation. Designed for universal DIN rail mounting, this module consumes approximately 530mW. For the best prices, check out IndMALL Automation.
