ABB VFD: AC Drive & HAVC Frequency Drive

At IndMALL Automation, we offer a variety of ABB VFD, perfect for different industrial needs and air conditioning systems. Our range includes popular models like ABB ACH550 VFD, ABB VFD ACS880, and ABB HVAC VFD.

These ABB drives are great for controlling motors efficiently and can adjust to different settings. Our ABB VFD drives, including ABB VFD ACS580 and ABB ACH480, are reliable and help save energy, making them ideal for all kinds of industrial work.

If you need to control motors accurately or want to cut down on energy use, our ABB Drive and VFD ABB products are excellent choices.

ABB VFD: ACS180

Voltage Support: 1-phase 200-240V, 3-phase 200-240V, 3-phase 380-480V
Power Factor: cosϕ = 0.98
Motor Control: Offers both scalar and sensorless vector control, with a frequency range of up to 599 Hz.
Connectivity: Features analog and digital inputs/outputs, relay output, and RJ45/Modbus RTU communication.

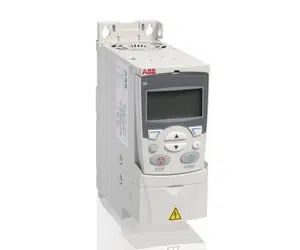

ABB VFD ACS310

Features: Equipped with PID controllers, PFC, energy efficiency calculators, optimizer, and load analyzer
Voltage/Power Range: 1-phase, 200-240 V: 0.5-3 hp, 3-phase, 200-240 V: 0.5-15 hp, 3-phase, 380-480 V: 0.5-30 hp
Motor Control: Supports asynchronous induction motors, frequency range 0-500 Hz, with various control profiles
Connectivity: Features Modbus RTU EIA-485 and EIA-232, optional Modbus TCP

ABB Drives: ACS355

Power Range: 0.5 to 30 hp (0.37 to 22 kW)
Voltage Range: 1-phase, 200 to 240 V ± 10%, 3-phase, 200 to 240 V ± 10%, 3-phase, 380 to 480 V ± 10%
Connectivity Options: Multiple fieldbus connections including PROFIBUS DP, CANopen®, DeviceNet™, Modbus, Ethernet, Profinet, EtherCAT®, LonWorks®.
Environmental Limits: Operates in temperatures from 14 to 104 °F (-10 to 40 °C), with up to 122 °F (50 °C) with derating.

VFD Drive ABB: ACS480

Voltage and Power Range: 3-phase, 380 to 480 V, 0.75 to 22 kW
Motor Control: Offers scalar and vector control, with a frequency range of 0 to 599 Hz
Connectivity: Includes EIA-485 Modbus RTU, multiple analog/digital inputs and outputs, and relay outputs
Environmental Limits: Operates in temperatures from -10 to +50 °C without derating, IP20 protection rating

ABB Drive: ACQ580

Voltage/Power Range: 3-phase 200-480V, 1-phase 200-230V; 0.37-500 kW capacity.
Motor Control: Supports scalar and vector control, frequency up to 500 Hz.
Safety Standards: Includes Safe Torque Off (STO), compliant with CE, UL, cUL, TÜV.
Operating Conditions: Functional from -15 °C to 55 °C, suitable for altitudes up to 4,000 m, and humidity levels of 5-95%.

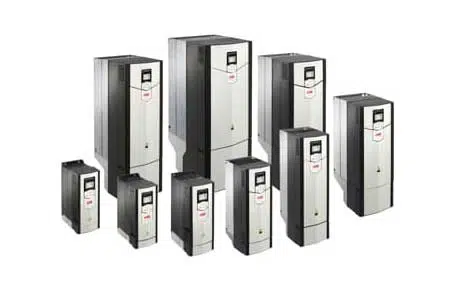

ABB VFD ACS880

Voltage/Power Range: 3-phase, 380-690 V; 1.5-6000 kW (INU), 50-6944 kVA
Frequency: 50/60 Hz ±5%.
Power Factor: Up to 0.99 (total) for ISU, 0.93-0.95 for DSU and RRU
Protection: IP22 standard for air-cooled, IP42 for liquid-cooled
Motor Control: Direct torque control (DTC), open and closed loop, up to ±598 Hz frequency

ABB VFD Drives: ACS380

Voltage/Power Range: 1-phase, 200-240 V, 0.25-3.0 kW, 3-phase, 200-240 V, 0.25-15 kW / 380-480 V, 0.37-22 kW
Frequency: 50/60 Hz ± 5%
DC Connection: 270-648 V ±10% (depending on type)
Motor Connection: 0 to UN, 3-phase; 0 to 599 Hz
Motor Control: Scalar and vector control; 1-12 kHz switching frequency

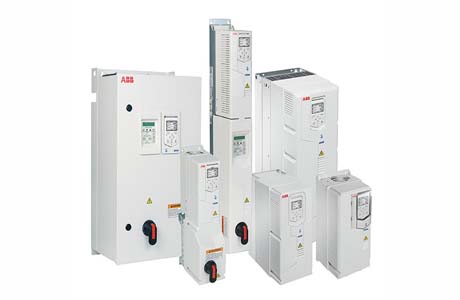

ABB ACH580 VFD

Voltage/Power Range: 3-phase, 200-240 V, 380-480 V
Frequency: 48 to 63 Hz
Power Factor: 0.98 for ACH580-01, -04, -07; 1.0 for ACH580-31, -34
Motor Connection: Voltage up to U_N, 3-phase; Frequency up to 500 Hz
Inputs/Outputs: 2 analog inputs, 2 analog outputs, 6 digital inputs, 3 relay outputs; supports various sensors

ABB AC Drive: ACS580

Voltage/Power Range: 3-phase, 200-240 V (0.75-75 kW), 380-480 V
Frequency: 47 to 63 Hz
Power Factor: cosϕ = 0.98
Motor Connection: Voltage 0 to U_N, 3-phase; Frequency 0 to 500 Hz.
Inputs/Outputs: 2 analog inputs, 2 analog outputs, 6 digital inputs, 3 relay outputs

Drive ABB – ACH480

Voltage/Power Range: 3-phase, 380-480 V, 0.75 to 22 kW
Frequency: 48 to 63 Hz
Power Factor: 0.98
Motor Connection: Voltage 0 to U_N, 3-phase; Frequency 0 to 599 Hz
Protection: IP20 standard, UL Type 1 optional
Inputs/Outputs: 2 analog inputs, 2 analog outputs, 6 digital inputs, 3 relay outputs

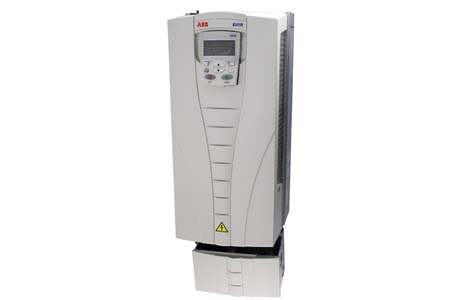

ABB ACH550 VFD

Supply: 3-phase, 380-480V/208-240V; 1-phase, 208-240V (50% derating)
Motor Connection: 3-phase voltage, 0-500 Hz frequency; rated currents with temperature-based derating
Protection: IP21 or IP54; various motor and circuit protections
Inputs/Outputs: 2 analog inputs and outputs; 6 digital inputs; 3 relay outputs; 24V DC auxiliary voltage

ABB HVAC VFD – ACS560

Mains Connection: 3-phase, 380-480V, +10%/-15%; 50/60 Hz; Power factor 0.98; 98% efficiency
Motor Connection: 0 to UN, 3-phase; 0 to 500 Hz frequency; Scalar and vector control
Features: Built-in C3 filter, coated circuit boards
Temperature Range: Storage/Transport -40 to +70°C; Operation -15 to +40°C
Protection Class: IP20

The wide variety of ABB VFD(Variable Frequency Drives) available at IndMALL Automation, where quality meets cost-effectiveness. Our selection includes various models like the ABB HVAC VFD and ABB ACS580 VFD, available in a wide array of power capacities including 3 HP, 7.5 HP, 10 HP, 15 HP, and 20 HP. From the compact yet powerful 5 HP models to the more robust 20 HP versions, each ABB VFD is competitively priced, as shown in our detailed ABB VFD price list.

At IndMALL Automation, we ensure you have access to the full range of ABB Drives, including both single-phase and three-phase options, known for their high efficiency and dependability. For those seeking in-depth information, the ABB VFD manual PDF offers extensive guidance on settings and operation. Whether you need a smaller 3hp ABB VFD or a larger capacity drive, our price list provides the best value for your investment. Trust IndMALL Automation for all your ABB VFD needs, where we combine top-notch technology with affordability

Product List:

Model No	Frequency (f)	Mounting Type	Input Voltage	Enclosure Type NEMA	Number of Phases
ACS310-01E-02A4-2	50/60 Hz	Module for cabinet building	200 … 240 V	Open Type	1
ACQ580-01-026A-4	47.5 … 63 Hz	Wall-mounted_NO UNIT$	200 … 240 V	Type1	3
ACS310-01E-02A4-2	47.5 … 63 Hz	Module for cabinet building	380 … 480 V	Open Type	3
ACH550-02-368A-4	48 … 63 Hz	Freestanding units	380 … 480 V	–	3
ACS355 DEMO	50/60 Hz	Wall-mounting	380 … 480 V	Type4X	3

Frequently Asked Questions

What is the frequency range of ABB VFD?

The frequency range of ABB VFDs (Variable Frequency Drives) varies by model, but generally, they can operate within a range of 0 to 599 Hz.

This means they can adjust the speed of electric motors from very slow to very fast, making them versatile for different industrial uses.

This wide frequency range allows for precise control of motor speed, leading to better performance and energy savings in various applications.

What is DTC in ABB drive?

DTC in ABB drives stands for Direct Torque Control. It’s a way to control motors very precisely. Imagine driving a car where you can control the speed and power very smoothly – that’s what DTC does for motors.

It quickly adjusts the motor’s speed and torque (force) without needing a separate sensor. This makes the motor run more efficiently, respond faster, and use less energy. It’s especially useful in situations where you need very accurate control, like in manufacturing or heavy machinery.

What is the power factor of ABB VFD?

The power factor of ABB VFDs, or Variable Frequency Drives, is usually around 0.98. In simple terms, the power factor measures how effectively electrical power is converted into useful work output. A power factor close to 1, like 0.98, means the VFD is very efficient in using electricity.

It’s converting most of the power it gets into useful work with minimal waste. This high efficiency is good for saving energy and reducing costs, making ABB VFDs a smart choice for controlling motors in various applications.
