Allen Bradley VFD | Rockwell AC Drive & PowerFlex 40|Indmall
+91 79955 44066 sales@indmall.in

Home / Products / VFD / Allen Bradley

Allen Bradley VFD: Rockwell AC Drive & PowerFlex 40

At IndMALL Automation, we offer a wide selection of Allen Bradley VFD, known for their great performance and reliability. Our products include Allen Bradley AC Drives, perfect for different industrial needs. If you need to control the speed of your machines accurately, our Allen Bradley Frequency Drives are a great choice. We also have Allen Bradley VFD Drives, including the powerful 40 HP VFD, ideal for heavy-duty tasks.

For those looking for top-notch drives, we have the Allen Bradley Variable Frequency Drive and the popular Allen Bradley VFD PowerFlex series. At IndMALL, we’re all about providing you with reliable and high-quality Rockwell VFD solutions.

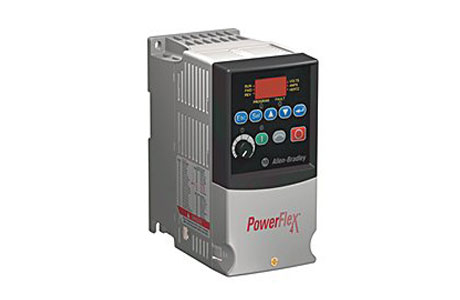

Allen Bradley VFD

Allen Bradley VFD: PowerFlex 4 AC Drives

  • Power Ratings: 0.2–3.7 kW / 0.25–5 Hp across various voltages.
  • Enclosures: IP20, optional IP30 kit.
  • Ambient temperatures up to 50 °C.
  • Control: V/Hz control, slip compensation.
  • Communication: Integral RS-485, optional network modules.
  • Features: Overload protection, ramp regulation.

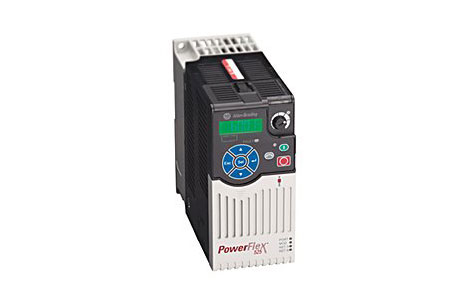

Allen Bradley AC Drive

Allen Bradley AC Drive: PowerFlex 525

  • Power Rating: 0.4 to 22 kW (0.5 to 30 Hp).
  • Voltage: 100 to 600V.
  • Modular design with removable control core.
  • Motor Control: Volts per hertz, sensorless vector, and closed loop velocity vector.
  • Built-in EtherNet/IP for integration.
  • Operates up to 70 °C (158 °F).

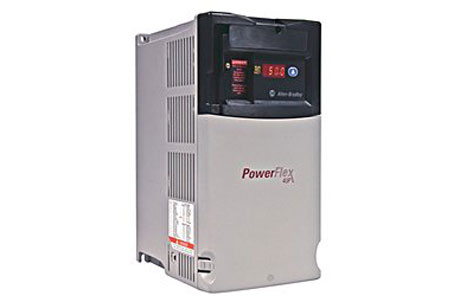

Allen Bradley VFD Drives

Allen Bradley VFD Drives: PowerFlex 40P

PowerFlex 40P AC Drives by Allen-Bradley feature:

  • Power Ratings: 0.4 to 11 kW (0.5 to 15 Hp) across various voltages.
  • Enclosure: IP20, optional IP30 conversion kit.
  • Control: V/Hz, sensorless vector, process PID.
  • Communication: Internal RS-485, CIP.
  • Interface: 4-digit display, optional Remote HIM.
  • Programming: LCD keypad, software, Logix platform integration.

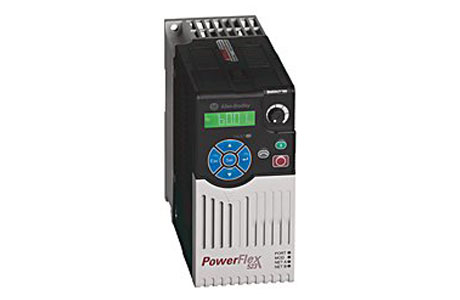

Allen Bradley Frequency Drive

Allen Bradley Frequency Drive: PowerFlex 523

  • Power Ratings: 0.2 to 22 kW (0.25 to 30 Hp) with global voltage classes of 100 to 600V.
  • Modular design with a removable control core for easy installation and configuration.
  • Motor Control: Offers volts per hertz, sensorless vector control.
  • Operates in ambient temperatures up to 70 °C (158 °F) with current derating and a control module fan kit.
  • Mounting: Side-by-side with a 50 mm air-flow gap.

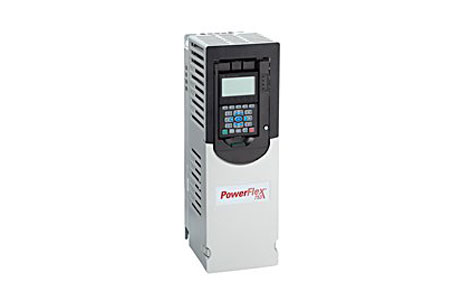

Allen Bradley AC VFD Drives

Allen Bradley AC VFD Drives: PowerFlex 753

  • Power Ratings: 0.37 to 250 kW (0.5 to 400 Hp) across various voltages.
  • Enclosures: IP00/IP20, flange mount, IP54.
  • Dual-port EtherNet/IP™ for network integration.
  • Modular slots for customization.
  • Programming: LCD HIM, various software options.
Allen Bradley Variable Speed Drives

Allen Bradley Drives: PowerFlex 755

  • Power Ratings: 0.37–132 kW (200…240V), 0.75–1400 kW (380…480V), 1.0–1500 Hp (600V), 7.5–1500 kW (690V).
  • Enclosures: IP00/IP20, IP54.
  • Dual-port EtherNet/IP™.
  • Control: V/Hz, vector, sensorless vector, permanent magnet motor control.
  • Programming: LCD HIM, software options.

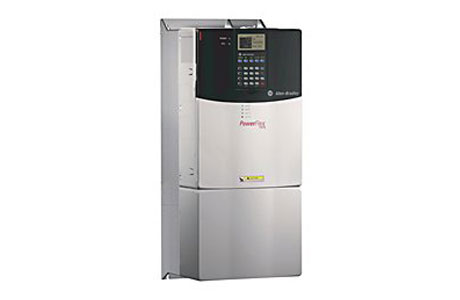

Allen Bradley Variable Frequency Drive

Allen Bradley Variable Frequency Drives: PowerFlex 755

  • Power Ratings: 0.37–132 kW (200…240V), 0.75–1400 kW (380…480V), 1.0–1500 Hp (600V), 7.5–1500 kW (690V).
  • Enclosures: IP00/IP20, IP54.
  • Dual-port EtherNet/IP™.
  • Control: V/Hz, vector, sensorless vector, permanent magnet motor control.
  • Programming: LCD HIM, software options.

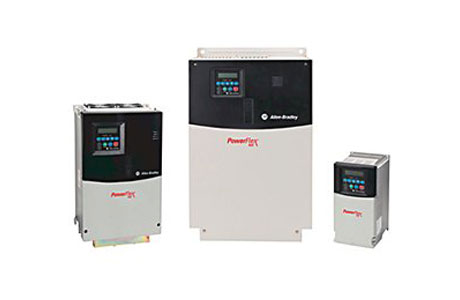

Allen Bradley VFD Powerflex 400

Allen Bradley VFD Powerflex 400

  • Power Ratings: 2.2–250 kW / 3–350 Hp.
  • Voltage Range: 200…240V and 380…480V.
  • Enclosures: NEMA/UL Type 1, 12, 3R, 4.
  • Control: V/Hz, slip compensation, PID.
  • Communication: RS-485, CIP, Modbus RTU, Metasys N2, Apogee FLN P1.
  • Programming: Keypad, DriveTools SP software.
  • Integration: Logix control platform.

Product List:

Model No Image Kilo Watt Horse Power Power Supply Output Current Output Frequency

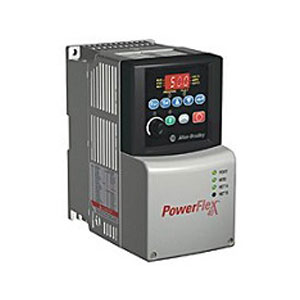

22B-A5P0N114 22B-A5P0N114 0.75 kW 1 HP 200…240V AC Panel Mount 5 Amps

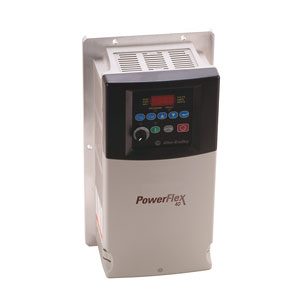

22B-A012F104 22B-A012F104 2.2 kW 1 HP 200…240V AC Flange Mount 12 Amps

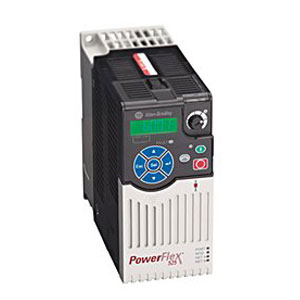

25B-A011N104 25B-A011N104 2.2 kW 3 HP 200…240V AC IP20 NEMA / Open Type 11 Amps

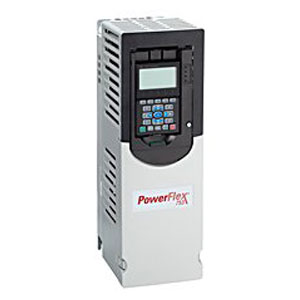

20F11FB015JA0NNNNN 20F11FB015JA0NNNNN 4 KW 5 HP 200…240V AC Flange Type 15.3 Amps

IndMALL Automation is your destination for Allen Bradley VFDs. Our range includes the versatile PowerFlex 525, ideal for applications up to 30 HP, and the robust PowerFlex 753 for more complex needs. We also offer the durable PowerFlex 400 series, perfect for controlling fans and pumps.

For ease of use, we provide to Allen Bradley VFD manuals in PDF format, including the PowerFlex 525 and 753 series, ensuring you have all the information for effective programming and operation. Our collection covers various models, from the compact Allen Bradley 525 VFD to the powerful 5 HP VFD, each designed for specific industrial requirements.

We guarantee the delivery of high-quality and reliable Rockwell VFD drives. Our expert team is always available to assist with programming and customization, ensuring that your VFDs are precisely tailored to meet your specific needs. Trust IndMALL Automation for all your Allen Bradley VFD or Rockwell VFD Drive solutions and reach out to us now.
