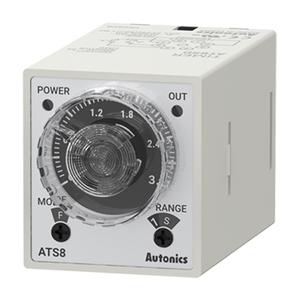

Autonics ATS8-21 - Compact Multi-Function Analog Timers
Technical Specifications of Autonics Compact Multi-Function Analog Timers ATS8-21:
Spec | Value |
---|
Output Operation | POWER ON DELAY, FLICKER, INTERVAL |
Terminal | 8-pin plug |
Power supply | 24VAC~ 50/60Hz, 24VDC @(=) |
Control output | Time-limit DPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode |
Autonics Compact Multi-Function Analog Timers ATS8-21 Technical Specifications
Specification | Value |
---|
Operation method | Time setting |
Output Operation | POWER ON DELAY, FLICKER, INTERVAL |
Time operation | POWER ON START |
Terminal | 8-pin plug |
Power supply | 24VAC~ 50/60Hz, 24VDC @(=) |
Setting range | 0.1 to 1 sec, 1 to 10 sec, 0.1 to 1 min, 1 to 10 min, 0.1 to 1 hour, 1 to 10 hour |
Control output | Time-limit DPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode |
Accessories | Bracket |
Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
Environment_Ambient humidity | 35 to 85%RH |
Weight | Approx. 95g (approx. 70g) |
