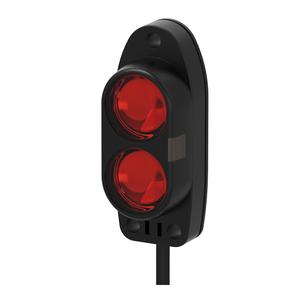

BA2M-DDT-P: Autonics Diffuse Type Photoelectric Sensor
Technical Specifications of Autonics BA2M-DDT-P:
| Spec | Value |
|---|---|
| Sensing Type | Diffuse reflective type |
| Sensing Distance | 2m |
| Control Output | PNP open collector |
| Connection Type | Cable type(Ø3, 2m) |
Autonics Diffuse Type Photoelectric Sensor BA2M-DDT-P Technical Specifications:
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 2m |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 15mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON |
| Control output | PNP open collector |
| Connection type | Cable type(Ø3, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55℃, storage: -25 to 70℃ |
| Protection structure | IP64 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Indicator:Polycarbonate, Adjuster: IXEF |
| Weight | Approx. 50g |
Call us for Autonics Diffuse Type Photoelectric Sensor BA2M-DDT-P at the best rates. Technical Attributes of BA2M-DDT-P are Diffuse reflective type, 2m Sensing Distance, Infrared LED(850nm) light source, 12-24VDC ±10%(ripple P-P: max. 10%) power supply, Max. 15mA current consumption, Light ON, PNP open collector output, Cable type(Ø3, 2m), IP64 Protection structure. Unlock Exclusive Pricing with a Quote for your requirement of Autonics Diffuse Type Photoelectric Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
