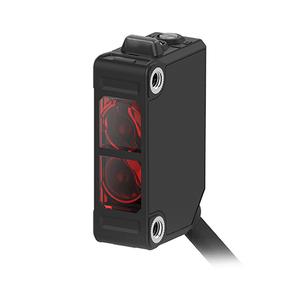

BJX100-DDT: Autonics 100mm Diffuse Photo Sensor
Technical Specifications of Autonics BJX100-DDT:
| Spec | Value |
|---|---|
| Sensing Type | Diffuse reflective type |
| Sensing Distance | 100mm |
| Control Output | NPN open collector |
| Connection Type | Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) |
Autonics 100mm Diffuse Photo Sensor BJX100-DDT Technical Specifications:
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 100mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(850nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | NPN open collector |
| Connection type | Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60℃, storage: -40 to 70℃ |
| Protection structure | IP65(IEC standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: polycarbonate, LED CAP: polycarbonate, Lens, Lens cover: polymethyl methacrylate |
| Weight | Approx. 100g(approx. 50g) |
Talk to Our Engineer for Autonics 100mm Diffuse Photo Sensor BJX100-DDT with exclusive offers. Core System Specifications of BJX100-DDT are Diffuse reflective type, 100mm Sensing Distance, Infrared LED(850nm) light source, 10-30VDC ±10%(ripple P-P: max. 10%) power supply, Max. 30mA current consumption, Light ON/Dark ON(set by switch), NPN open collector output, Ø4mm, 3-wire, 2m (emitter of through-beam type: Ø4mm, 2-wire, 2m), IP65(IEC standard) Protection structure. Don't Miss Out on a Quote for your requirement of Autonics 100mm Diffuse Photo Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
