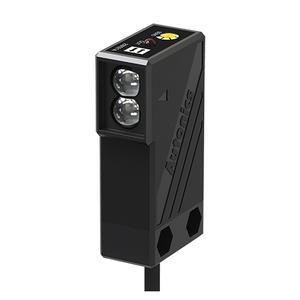

BMS300-DDT: Autonics 12 Volt Photoelectric Sensor
Technical Specifications of Autonics BMS300-DDT:
| Spec | Value |
|---|---|
| Sensing Type | Diffuse reflective type |
| Sensing Distance | 300mm |
| Control Output | NPN open collector |
| Connection Type | Cable type(Ø5, 2m) |
Autonics 12 Volt Photoelectric Sensor BMS300-DDT Technical Specifications:
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 300mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(940nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 45mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
| Connection type | Cable type(Ø5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -10 to 60℃, storage: -25 to 70℃ |
| Protection structure | - |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: Acrylonitrile butadiene styrene, Sensing part: Polycarbonate, Bracket: Steel plate cold commercial, Bolt:Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Weight | Approx. 100g |
Obtain a Quote for Autonics 12 Volt Photoelectric Sensor BMS300-DDT at economical prices. Specifications Overview for BMS300-DDT reveals Diffuse reflective type, 300mm Sensing Distance, Infrared LED(940nm) light source, 12-24VDC ±10%(ripple P-P: max. 10%) power supply, Max. 45mA current consumption, Light ON/Dark ON(set by control wire), NPN open collector output, Cable type(Ø5, 2m). Take the First Step with a Quote for your requirement of Autonics 12 Volt Photoelectric Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
