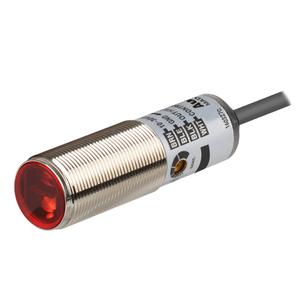

BRQM1M-DDTA: Autonics NPN Diffuse Reflective Sensor
Technical Specifications of Autonics BRQM1M-DDTA:
| Spec | Value |
|---|---|
| Sensing Type | Diffuse reflective type |
| Sensing Distance | 1m |
| Control Output | NPN open collector |
| Connection Type | Cable type(Ø4, 2m) |
Autonics NPN Diffuse Reflective Sensor BRQM1M-DDTA Technical Specifications:
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 1m |
| Sensing target | Opaque, Translucent material |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | NPN open collector |
| Connection type | Cable type(Ø4, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60℃, storage: -30 to 70℃ |
| Protection structure | IP67(IEC standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: brass, Ni-plate, Lens, Lens cover: polymethyl methacrylate acrylic |
| Weight | Approx. 150g(approx. 70g) |
Call us for Autonics NPN Diffuse Reflective Sensor BRQM1M-DDTA at the best rates. Technical Attributes of BRQM1M-DDTA are Diffuse reflective type, 1m Sensing Distance, Red LED(660nm) light source, 10-30VDC ±10%(ripple P-P: max. 10%) power supply, Max. 30mA current consumption, Light ON/Dark ON(set by control wire), NPN open collector output, Cable type(Ø4, 2m), IP67(IEC standard) Protection structure. Unlock Exclusive Pricing with a Quote for your requirement of Autonics NPN Diffuse Reflective Sensor. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
