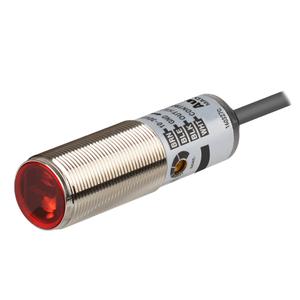

BRQM20M-TDTA-P: Autonics Through-beam Sensor
Technical Specifications of Autonics BRQM20M-TDTA-P:
| Spec | Value |
|---|---|
| Sensing Type | Through-beam type |
| Sensing Distance | 20m |
| Control Output | PNP open collector |
| Connection Type | Cable type(Ø4, 2m) |
Autonics Through-beam Sensor BRQM20M-TDTA-P Technical Specifications:
| Specification | Value |
|---|---|
| Sensing type | Through-beam type |
| Sensing distance | 20m |
| Sensing target | Opaque material of min. Ø7mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Cable type(Ø4, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60℃, storage: -30 to 70℃ |
| Protection structure | IP67(IEC standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: brass, Ni-plate, Lens, Lens cover: polymethyl methacrylate acrylic |
| Weight | Approx. 220g (approx. 140g) |
Talk to Our Engineer for Autonics Through-beam Sensor BRQM20M-TDTA-P with exclusive offers. Core System Specifications of BRQM20M-TDTA-P are Through-beam type, 20m Sensing Distance, Red LED(660nm) light source, 10-30VDC ±10%(ripple P-P: max. 10%) power supply, Emitter/Receiver: Max. 20mA current consumption, Light ON/Dark ON(set by control wire), PNP open collector output, Cable type(Ø4, 2m), IP67(IEC standard) Protection structure. Don't Miss Out on a Quote for your requirement of Autonics Through-beam Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
