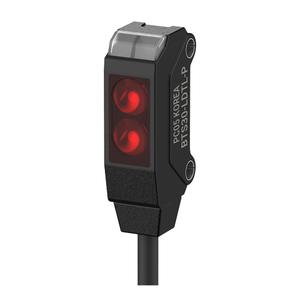

BTS30-LDTL-P: Autonics Convergent Reflective Sensor
Technical Specifications of Autonics BTS30-LDTL-P:
| Spec | Value |
|---|---|
| Sensing Type | Convergent reflective type |
| Sensing Distance | 5 to 30mm |
| Control Output | PNP open collector |
| Connection Type | Cable type(Ø2.5, 2m) |
Autonics Convergent Reflective Sensor BTS30-LDTL-P Technical Specifications:
| Specification | Value |
|---|---|
| Sensing type | Convergent reflective type |
| Sensing distance | 5 to 30mm |
| Sensing target | Opaque, Translucent material(min. sensing target: Ø0.15mm) |
| Light source | Red LED(650nm) |
| Response time | Max. 1ms |
| Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 20mA |
| Sensitivity adjustment | - |
| Operation mode | Light ON |
| Control output | PNP open collector |
| Connection type | Cable type(Ø2.5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 10,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 55℃, storage: -30 to 70℃ |
| Protection structure | IP67 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | Case: polybutylene terephthalate, sensing part: polymethyl methacrylate,, bracket: SUS304(steel use stainless 304), bolt: carbon steel, sleeve: SUS304(steel use stainless 304 |
| Weight | Approx. 45g(approx. 25g) |
