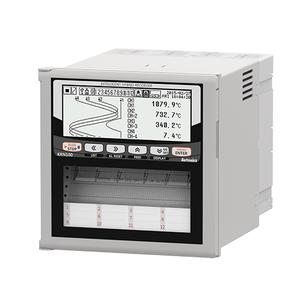

KRN100-06001-01-0S: Autonics 6-channel Paperless Recorders

Technical Specifications of Autonics 6-channel Paperless Recorders KRN100-06001-01-0S:

SpecValue
Power supply_AC power100-240VAC 50/60Hz
Number of input channels6-channel
Universal inputTemperature sensor (RTD, thermocouple), analog (voltage, current)
Alarm relay outputs4(KRN-AR4×1)

Autonics 6-channel Paperless Recorders KRN100-06001-01-0S Technical Specifications:

SpecificationValue
Power supply_AC power100-240VAC 50/60Hz
Number of input channels6-channel
Universal inputTemperature sensor (RTD, thermocouple), analog (voltage, current)
Sampling cycle1 to 4-channel: 25ms/125ms/250ms, 5 to 12-channel: 125ms/250ms (inner sampling period is operation unit time for average movement filter and alarm output function.) ※Min. sampling period for TC-R, U, S, T sensor is 50ms.
Storage cycle1 to 3600 sec (storage interval time to inner log file is 1 sec)
Innner memory512MB
USB memoryUser purchased, recognizes Max. 32GB, enables to use cable up to 1.5m
Digital inputsNone
Alarm transistor outputsNone
Alarm relay outputs4(KRN-AR4×1)
Transmitter power outputsNone
Communication outputRS485/Ethernet/USB(KRN-COM×1)
Protection structureIP40 (for front panel)
Environment_Ambient temperature0 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity35 to 85% RH, storage: 35 to 85% RH
WeightApprox. 2.4 to 2.7kg (approx. 1.7 to 2.0kg)
Ask for the Pricing of Autonics 6-channel Paperless Recorders KRN100-06001-01-0S at unbeatable prices. Detailed Specifications of KRN100-06001-01-0S feature 100-240VAC 50/60Hz power supply, 6-channel Input, Temperature sensor (RTD, thermocouple), analog (voltage, current) universal input, 1 to 3600 sec (storage interval time to inner log file is 1 sec) storage cycle, 512MB Innner memory, User purchased, recognizes Max. 32GB, enables to use cable up to 1.5m USB memory. Now's the Time to Secure a Quote for your requirement of Autonics 6-channel Paperless Recorders. We're committed to offering more favorable pricing and more responsive support than other Traders.
