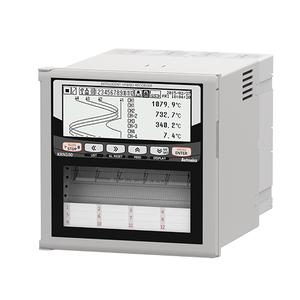

KRN100-06002-00-0S: Autonics Digital Data Recorders
Technical Specifications of Autonics Digital Data Recorders KRN100-06002-00-0S:
| Spec | Value |
|---|---|
| Power supply_AC power | 100-240VAC 50/60Hz |
| Number of input channels | 6-channel |
| Universal input | Temperature sensor (RTD, thermocouple), analog (voltage, current) |
| Alarm relay outputs | 4(KRN-AR4×1) |
Autonics Digital Data Recorders KRN100-06002-00-0S Technical Specifications:
| Specification | Value |
|---|---|
| Power supply_AC power | 100-240VAC 50/60Hz |
| Number of input channels | 6-channel |
| Universal input | Temperature sensor (RTD, thermocouple), analog (voltage, current) |
| Sampling cycle | 1 to 4-channel: 25ms/125ms/250ms, 5 to 12-channel: 125ms/250ms (inner sampling period is operation unit time for average movement filter and alarm output function.) ※Min. sampling period for TC-R, U, S, T sensor is 50ms. |
| Storage cycle | 1 to 3600 sec (storage interval time to inner log file is 1 sec) |
| Innner memory | 512MB |
| USB memory | User purchased, recognizes Max. 32GB, enables to use cable up to 1.5m |
| Digital inputs | None |
| Alarm transistor outputs | None |
| Alarm relay outputs | 4(KRN-AR4×1) |
| Transmitter power outputs | None |
| Communication output | None |
| Protection structure | IP40 (for front panel) |
| Environment_Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 2.4 to 2.7kg (approx. 1.7 to 2.0kg) |
Mail Us for Autonics Digital Data Recorders KRN100-06002-00-0S at the lowest pricing. Technical Specs Summary of KRN100-06002-00-0S are 100-240VAC 50/60Hz power supply, 6-channel Input, Temperature sensor (RTD, thermocouple), analog (voltage, current) universal input, 1 to 3600 sec (storage interval time to inner log file is 1 sec) storage cycle, 512MB Innner memory, User purchased, recognizes Max. 32GB, enables to use cable up to 1.5m USB memory. Take the First Step with a Quote for your requirement of Autonics Digital Data Recorders. Choose us for unparalleled pricing and support over other Dealers & Distributors.
