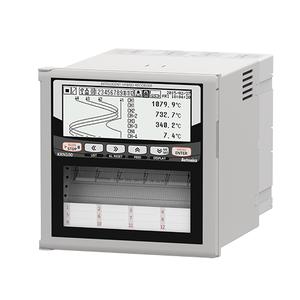

Technical Specifications of Autonics 100 mm Hybrid Recorders KRN100-06101-01-0S:
Spec
Value
6-channel
Number of input channels
Power supply
100-240VAC~ 50/60Hz
Environment_Ambient temperature
0 to 50℃, storage: -20 to 60℃ (without ink cartridge)
Environment_Ambient humidity
35 to 85% RH, storage: 35 to 85% RH
Autonics 100 mm Hybrid Recorders KRN100-06101-01-0S Technical Specifications
Specification
Value
Communication output
RS485/Ethernet/USB(KRN-COM×1)
Sampling cycle
1 to 4-channel: 25ms/125ms/250ms, 5 to 12-channel: 125ms/250ms(inner sampling period is operation unit time for average movement filter and alarm output function.)※Min. sampling period for TC-R, U, S, T sensor is 50ms.
Environment_Ambient temperature
0 to 50℃, storage: -20 to 60℃ (without ink cartridge)
Environment_Ambient humidity
35 to 85% RH, storage: 35 to 85% RH
Number of input channels
6-channel
Power supply
100-240VAC~ 50/60Hz
Universal input
Temperature sensor (RTD, thermocouple), analog (voltage, current)
Innner memory
512MB
Protection structure
IP40 (for front panel)
Storage cycle
1 to 3600 sec (storage interval time to inner log file is 1 sec)
USB memory
User purchased, recognizes Max. 32GB, enables to use cable up to 1.5m
