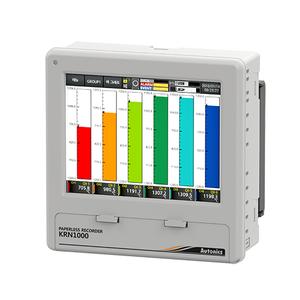

Autonics KRN1000-0841-0S - LCD Touchscreen Paperless Recorders
Technical Specifications of Autonics LCD Touchscreen Paperless Recorders KRN1000-0841-0S:
| Spec | Value |
|---|
| 8-channel | Number of input channels |
| Power supply | 100-240VAC~ 50/60Hz |
| Environment_Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Autonics LCD Touchscreen Paperless Recorders KRN1000-0841-0S Technical Specifications
| Specification | Value |
|---|
| Communication output | RS422/485+Ethernet+USB Device |
| Sampling cycle | 1 to 4-CH: 25ms/125ms/250ms, 5 to 16-CH: 125ms/250ms(internal sampling period is average movement filter and alarm output operation unit time) |
| Environment_Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Number of input channels | 8-channel |
| Power supply | 100-240VAC~ 50/60Hz |
| Universal input | Temperature sensors (thermocouple, RTD), Analog (voltage, current (shunt)) |
| Recording period | 1 to 3600 sec |
| Innner memory | Approx. 200MB |
| External memory | SD / USB memory Max. 32GB |
| Protection structure | IP50 (front part) |
| Option input/output | Alarm relay output 4 channels+Digital input 2 channels+24VDC @(=) power output for transmitter |
| Weight | Approx. 1290 to 1400g (approx. 590 to 700g) |
