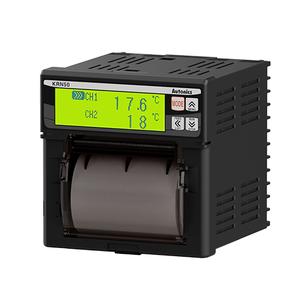

KRN50-1000-01: Autonics 50 mm Hybrid Recorders
Technical Specifications of Autonics 50 mm Hybrid Recorders KRN50-1000-01:
Spec | Value |
---|---|
Power supply_AC power | 24VDC |
Input type_RTD | JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω (5 types) |
Sampling cycle | 500ms/channel×2 channels = 1000ms |
Number of input channels | 1-channel |
Autonics 50 mm Hybrid Recorders KRN50-1000-01 Technical Specifications:
Specification | Value |
---|---|
Power supply_AC power | 24VDC |
Input type_RTD | JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω (5 types) |
Input type_TC | K, J, E, T, B, R, S, N, C, G, L, U, PLII (13 types) |
Input type_Analog | · Voltage: -50.0-50.0mV, -199.0-200.0mV, -1.000-1.000V, -1.00-10.00V (4 types) ; Current: 0.00-20.00mA, 4.00-20.00mA (2 types):※ For current input, connect external 50Ω B class (0.1%) high-accuracy resistor |
Sampling cycle | 500ms/channel×2 channels = 1000ms |
Number of input channels | 1-channel |
Environment_Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Weight | Approx. 700g (approx. 470g) |
Get A Quote for Autonics 50 mm Hybrid Recorders KRN50-1000-01 at the best price. Here are the brief Technical Specifications of KRN50-1000-01 are 24VDC power supply, JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω (5 types) Input type RTD, K, J, E, T, B, R, S, N, C, G, L, U, PLII (13 types) Input type TC, · Voltage: -50.0-50.0mV, -199.0-200.0mV, -1.000-1.000V, -1.00-10.00V (4 types) ; Current: 0.00-20.00mA, 4.00-20.00mA (2 types):※ For current input, connect external 50Ω B class (0.1%) high-accuracy resistor Input type Analog, 500ms/channel×2 channels = 1000ms Sampling cycle, 1-channel Input. It's Time to get a Quote for your requirement of Autonics 50 mm Hybrid Recorders. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
