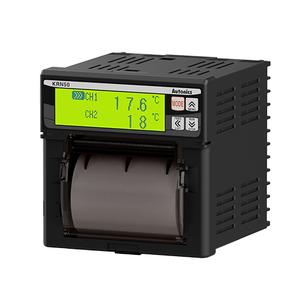

KRN50-1002-40: Autonics 50mm Small Hybrid Recorder
Technical Specifications of Autonics 50mm Small Hybrid Recorder KRN50-1002-40:
| Spec | Value |
|---|---|
| Power supply_AC power | 100-240VAC~ 50/60Hz |
| Input type_RTD | JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω (5 types) |
| Sampling cycle | 500ms/channel×2 channels = 1000ms |
| Number of input channels | 1-channel |
Autonics 50mm Small Hybrid Recorder KRN50-1002-40 Technical Specifications:
| Specification | Value |
|---|---|
| Power supply_AC power | 100-240VAC~ 50/60Hz |
| Input type_RTD | JPt100Ω, DPt100Ω, DPt50Ω, Cu100Ω, Cu50Ω (5 types) |
| Input type_TC | K, J, E, T, B, R, S, N, C, G, L, U, PLII (13 types) |
| Input type_Analog | · Voltage: -50.0-50.0mV, -199.0-200.0mV, -1.000-1.000V, -1.00-10.00V (4 types) ; Current: 0.00-20.00mA, 4.00-20.00mA (2 types):※ For current input, connect external 50Ω B class (0.1%) high-accuracy resistor |
| Sampling cycle | 500ms/channel×2 channels = 1000ms |
| Number of input channels | 1-channel |
| Environment_Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 700g (approx. 470g) |
