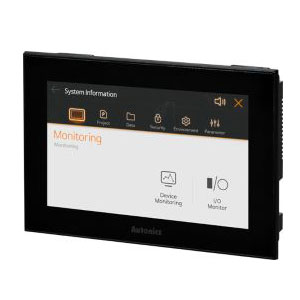

Autonics LP-A070-T9D6-C5T - 7-Inch Color LCD Logic Panels

Autonics 7-Inch Color LCD Logic Panels LP-A070-T9D6-C5T Technical Specifications
Spec | Value |
---|---|
Brand | Autonics |
Product Type | HMI |
Product | LP-A070-T9D6-C5T |
Autonics 7-Inch Color LCD Logic Panels LP-A070-T9D6-C5T Technical Specifications
Specification | Value |
---|---|
Display Specifications_LCD Type | TFT Color LCD |
Display Specifications_Resolution | 800×480 dot |
Display Specifications_Display Area | 154.4×93.44 mm |
Display Specifications_Color | 16,777,216 colors |
Graphic Drawing Memory | 64MB |
Touch method | Pressure sensitive type |
Interface_RS232C | 1 EA |
Interface_Ethernet | IEEE802.3(U), 10/100Base-T |
Power supply | 24VDC @(=) |
Protection structure | IP65 (Front panel, IEC standards) |
Dedicated Software | atDesigner, atLogic |
Interface_USB(Host) | 1 EA |
Interface_USB(Device) | 1 EA |
Graphic drawing Perfomance_Language | English, Korean |
Graphic drawing Perfomance_Text | Bitmap ASCII and vector font |
Graphic drawing Perfomance_Number of user screen | 100 pages |
Real-time controller | RTC embedded |
Accessories | Fixing bracket: 4, Battery (included) |
Environment_Ambient temperature | 0 to 50℃, storage: -20 to 60℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Interface_RS422 | 1 EA |
Weight | Approx. 742g (approx. 540g) |
Obtain a Quote for Autonics 7-Inch Color LCD Logic Panels LP-A070-T9D6-C5T at economical prices. Specifications Overview for LP-A070-T9D6-C5T reveals 64MB graphic drawing memory, they provide clear and responsive visuals for real-time monitoring. The Pressure sensitive type method ensures smooth operation. Equipped with dual RS232C interfaces and Ethernet support IEEE802.3(U), 10/100Base-T, these HMIs enable efficient communication across networks. Powered by 24VDC @(=), they maintain stable performance in industrial environments. Built with an IP65 (Front panel, IEC standards)-rated front panel, they offer protection against dust and water per IEC standards. The dedicated software atDesigner, atLogic allows intuitive configuration and customization. Additional connectivity options include 1 EA USB Host and 1 EA USB Device interface, ensuring flexible data transfer. Designed for durability, they operate with storage temperatures ranging from 0 to 50℃, storage: -20 to 60℃ and humidity tolerance of 35 to 85% RH, storage: 35 to 85% RH. Take the First Step with a Quote for your requirement of 7-Inch Color LCD Logic Panels. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
