Autonics Panel Meter: Digital Panel & Ampere Meters

IndMALL offers the Autonics Panel Meter series, a collection of easy-to-use digital meters perfect for different kinds of work. Autonics meters are reliable and simple to operate, with features that can be adjusted to meet your needs. They are strong, save energy, and show information clearly and quickly. Whether you need the small MT4N series or the more advanced MX4W series, our Autonics Panel Meters give accurate readings and fit easily into your work setup.

Autonics Panel Meter

Autonics Panel Meter: MT4N Series

  • Display Range: -1999 to 9999.
  • Input/Output Options: Various, for diverse applications.
  • Features: High/low-limit scale, AC frequency measurement, zero-point adjustment.
  • Special Function: PV transmission output scale.
  • Application: Flexible use in different environments.
  • Design: Compact digital panel meters.

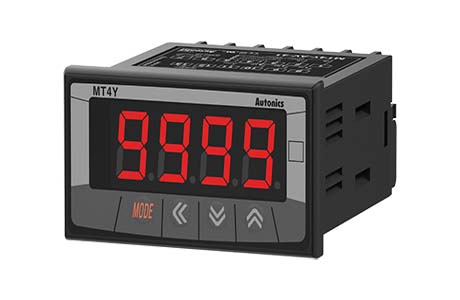

Autonics Panel Meter MT4W

Autonics Panel Meter MT4W Series

  • Input Options: DC/AC voltage and current.
  • Output Options: RS485, BCD, relay contact, etc.
  • Display Range: -1999 to 9999.
  • Features: High/low-limit scale, AC frequency measurement.
  • Size: MT4Y – 96 x 48 mm, MT4W – 72 x 36 mm.
  • Max Input: 500V/5A for both DC and AC.
  • Power Supply: 12-24VDC, 100-240VAC.

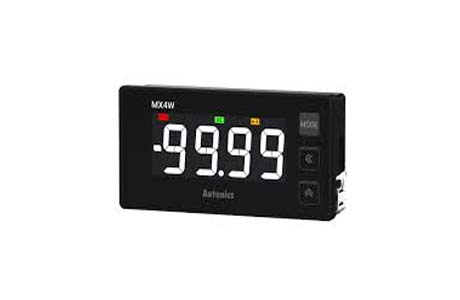

Autonics Digital Panel Meter

Autonics Digital Panel Meter: MX4W Series

  • Display: LCD with white PV characters, 19 mm height.
  • Size: DIN W 96 x H 48 mm, 20 mm rear-length.
  • Input Options: DC/AC voltage and current.
  • Max Input: 500 VDC/VAC, DC/AC 5 A.
  • Display Range: -9999 to 9999.
  • Features: High/low-limit scale, AC frequency measurement (0.100 to 1200 Hz).
  • Output: Preset OUT1, OUT2 (NPN/PNP open collector).
  • Special Function: Power factor display/output (-0.500.50).
  • Power Supply: 24-240 VAC/VDC, universal.
Autonics Meter

Autonics Meter: M4Y, M5W, M4W, M4M (Voltmeter)

  • Display: 7-segment LED.
  • Max Display Value: 19999 (M5W), 1999 (others).
  • Functions: Auto-zero adjustment, hold display (except M5W).
  • Measurement: RMS or AVG (AC voltage).
  • Size: Various DIN standard sizes.
  • Output Options: Indicator, single/dual setting output.

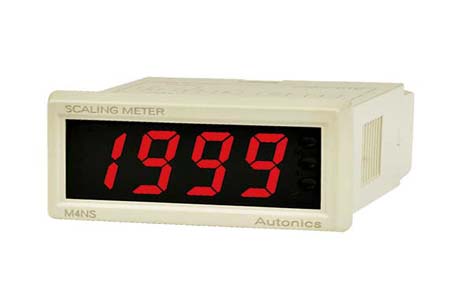

Digital Panel Meter Autonics

Digital Panel Meter Autonics: M4NS/M4YS Series Loop-Powered

  • Power: Loop-powered
  • Display Range: -1999 to 9999.
  • Display Cycle Time: Adjustable (0.5 to 5 seconds).
  • Sizes: M4NS – W48×H24mm, M4YS – W72×H36mm.
  • Functions: High/low-limit scale, peak value monitoring.
  • Input: DC 4-20mA.

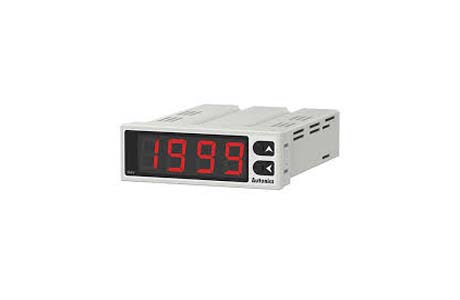

Autonics Digital Panel

Autonics Digital Panel: M4Y, M5W, M4W, M4M (Scaling) Series

  • Input: DC 4-20 mA (1-5 VDC optional).
  • Display: 7-segment LED.
  • Max Display Value: 19999 (M5W), 1999 (others).
  • Display Type: Linear based on input.
  • Size: Various DIN standard sizes.
  • Output Options: Indicator, single/dual setting output.

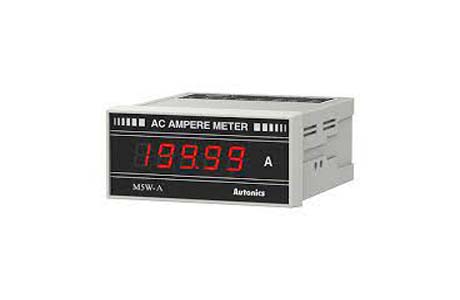

Autonics Ampere Meter

Autonics Ampere Meter: M4Y, M5W, M4W, M4M (Ammeter)

  • Measurement: Electric current in amperes.
  • Display: 7-segment LED.
  • Max Display Value: 19999 (M5W), 1999 (others).
  • Functions: Auto-zero adjustment, hold display (except M5W).
  • Value Type: RMS or AVG (AC voltage).
  • Size: Various DIN standard sizes.
  • Output Options: Indicator, single/dual setting output.
Autonics Digital Display Meters

Autonics Digital Display Meters: M4Y, M5W, M4W, M4M (Wattmeter)

  • Measurement: Electric power in watts.
  • Display: 7-segment LED.
  • Max Display Value: 19999 (M5W), 1999 (others).
  • Output Display: 0-10VDC from power converters (options for DC 4-20mA, 1-5VDC).
  • Functions: Auto-zero adjustment, hold display (except M5W).
  • Size: Various DIN standard sizes.
  • Output Options: Indicator, single/dual setting output

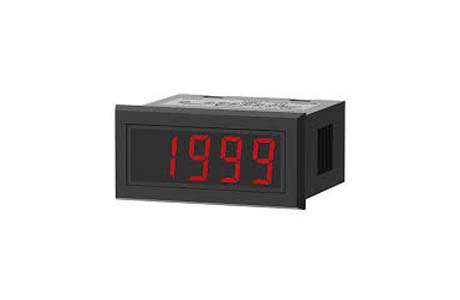

Autonics Panel Meter Digital

Autonics Panel Meter Digital: M4N Series

  • Input: DC voltage, DC current.
  • Functions: Auto-zero adjustment, hold display.
  • Max Display Value: 1999.
  • Display: 7-segment LED.
  • Size: Compact, DIN W48×H24mm.
  • Power Supply: 5VDC, 12-24VDC.
Autonics M4V Series

Autonics M4V Series

  • Input Options: 0-2VDC, 0-10VDC, 1-5VDC, DC 0-1mA, DC 4-20mA.
  • Display Range: -999 to 9999.
  • Accuracy: F.S ±2%rdg ±1dgt.
  • Features: High/low-limit scale, error display.
  • Processor: Built-in microprocessor.

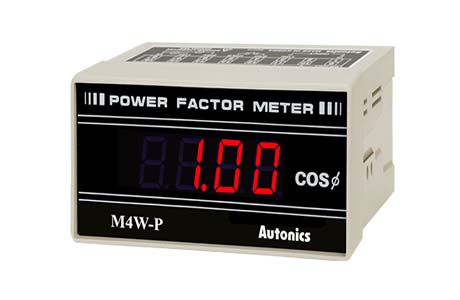

Autonics M4W-P Series

Autonics M4W-P Series

  • Function: Power factor display.
  • Input: DC 4-20mA (from power factor converter).
  • Display Range: -0.500.50.
  • Display: 14 mm 7-segment LED.
  • Size: DIN W 96 x 48 mm.

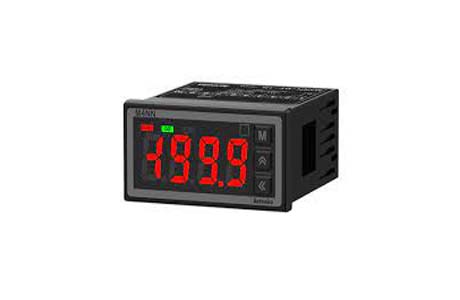

Autonics M4NN Series

Autonics M4NN Series

  • Input Options: DC/AC voltage, DC/AC current.
  • Output Options: NPN/PNP open collector.
  • Display Range: -1999 to 9999.
  • Features: High/low-limit scale, AC frequency measurement.
  • Power Supply: 5-24VDC (isolated).
  • Additional Functions: Peak value monitoring, zero-point adjustment.

Product List:

Model No


Display method

Character height

Max. display Range

Measurement

Sampling cycle
MT4W-DA-49 Autonics MT4W-DA-49 4-digit 7-segment LED 14.2mm -1999 to 9999 DC current 50ms
M4N-DA-1X Autonics M4N-DA-1X 3½-digit 7-segment LED 10mm 0 to 1999 DC current 300ms

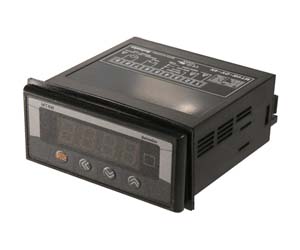

MT4W-DV-4N Autonics MT4W-DV-4N 4-digit 7-segment LED 14.2mm -1999 to 9999 DC voltage 50ms
M4Y-S-2 Autonics M4Y-S-2 3½-digit 7-segment LED 14mm 0 to 1999 Speed 300ms

Frequently Asked Questions

What is the function of a panel meter?

A panel meter is a device used to display information. It often shows measurements like voltage, current, or temperature. They’re usually found on control panels or equipment.

This meter reads data from sensors or inputs. Then, it shows the values on a screen, often digital or analog. This helps people monitor or control machines and processes.

In short, a panel meter gives a quick view of specific measurements. It helps ensure everything is working properly and safely.

What are the different types of panel meters?

Panel meters come in various types. They differ based on what they measure and display.

One common type is the digital meter. It displays numbers on a screen, like a calculator does. This type gives precise readings.

Another type is the analog meter. It uses a moving needle on a dial. This gives a visual representation of the value.

There are also specialty meters. These are designed for specific jobs, like measuring temperature or pH levels. Each type has its unique use and design.

In summary, panel meters vary by function. They can be digital, analog, or specialized for certain measurements.

What is the principle of analog panel meter?

An analog panel meter works on a simple principle. It uses a moving needle to show a value.

When electricity flows through the meter, it moves a coil. This coil moves the needle across a dial.

The position of the needle tells the measurement. For example, if it points to “5”, the value might be 5 volts or 5 amps.

Please contact us for more details about our Autonics Panel Meter.
