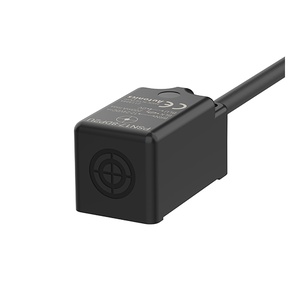

Autonics PSN17-8DP2U - Rectangular Inductive Proximity Sensor
Technical Specifications of Autonics Rectangular Inductive Proximity Sensor PSN17-8DP2U:
| Spec | Value |
|---|
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Sensing distance | 8mm |
| Response frequency | 200Hz |
| Control output | PNP Normally Closed |
Autonics Rectangular Inductive Proximity Sensor PSN17-8DP2U Technical Specifications
| Specification | Value |
|---|
| Wire type and power | DC 3-wire type 12-24VDC @(=) |
| Sensing side size | Frame size 17mm |
| Sensing distance | 8mm |
| Standard sensing target | 25×25×1mm(iron) |
| Response frequency | 200Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Closed |
| Sensing type | Upper sensing type |
| Material | Heat-resistant ABS |
| Protection structure | IP67 |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Weight | ≈ 62g (≈ 83g) |
