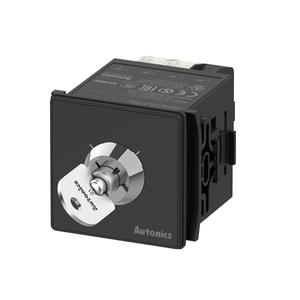

Autonics SF2KR-LR-A2B-01 - Safety Key Selector Switches
Technical Specifications of Autonics Safety Key Selector Switches SF2KR-LR-A2B-01:
Spec | Value |
---|
Key pushing force | ≥ 20 N |
Key rotating torque | 0.2 ~ 1.8 N·m |
Material | PC, POM |
Life cycle | Mechanical: ≥ 100,000 times, electrical: ≥ 100,000 times |
Autonics Safety Key Selector Switches SF2KR-LR-A2B-01 Technical Specifications
Specification | Value |
---|
Applicable cable | Contact: AWG 18 (0.823 mm²) |
Allowable operation frequency | 30 times/minute |
Life cycle | Mechanical: ≥ 100,000 times, electrical: ≥ 100,000 times |
Key pushing force | ≥ 20 N |
Key rotating torque | 0.2 ~ 1.8 N·m |
Insulation resistance | ≥ 100 MΩ (500 VDC@(=) megger) |
Dielectric strength | 2,500VAC~ 50/60Hz for 1 minute |
Vibration | 1.5mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 2 hours |
Shock | 300m/s² (approx. 30G) in each X, Y, Z direction for 3 times |
Ambient temperature | -20 to 70℃ (UL approved ambient temperature: 55 ℃), storage: -40 to 70 ℃ (at no freezing or condensation) |
Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Protection structure | IP65 (Front panel, IEC standards) |
Material | PC, POM |
Weight | ≈ 130 g (≈ 192 g) |
