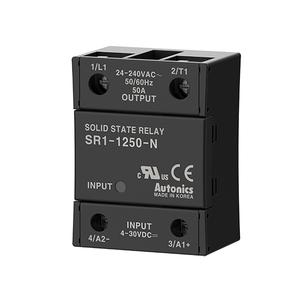

SR1-1250-N: Autonics Single-Phase Solid State Relay
Technical Specifications of Autonics Single-Phase Solid State Relay SR1-1250-N
| Spec | Value |
|---|---|
| Control phase | Single-phase |
| Mounting type | Panel |
| Rated input voltage | 4-30VDC |
| Rated load current | 50A |
Autonics Single-Phase Solid State Relay SR1-1250-N Technical Specifications:
| Specification | Value |
|---|---|
| Control phase | Single-phase |
| Mounting type | Panel |
| Rated input voltage | 4-30VDC |
| Rated load voltage | 24-240VAC~ |
| Dielectric strength | 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case) |
| Rated load current | 50A |
| Function | Zero cross turn-on |
| Environment_Ambient temperature | -30 to 80℃, storage: -30 to 100℃(The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | Approx. 111g(approx. 73g) |
Talk to Our Engineer for Autonics Single-Phase Solid State Relay SR1-1250-N with exclusive offers. Core System Specifications of SR1-1250-N are Single-phase, Panel mounting, 4-30VDC input voltage, 24-240VAC~ load voltage, 50A load current, Zero cross turn-on function. Don't Miss Out on a Quote for your requirement of Autonics Single-Phase Solid State Relay. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
