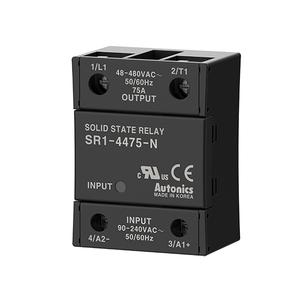

SR1-4475-N: Autonics Solid State Power Relay
Technical Specifications of Autonics Solid State Power Relay SR1-4475-N
| Spec | Value |
|---|---|
| Control phase | Single-phase |
| Mounting type | Panel |
| Rated input voltage | 90-240VAC~ |
| Rated load current | 75A |
Autonics Solid State Power Relay SR1-4475-N Technical Specifications:
| Specification | Value |
|---|---|
| Control phase | Single-phase |
| Mounting type | Panel |
| Rated input voltage | 90-240VAC~ |
| Rated load voltage | 48-480VAC~ |
| Dielectric strength | 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case) |
| Rated load current | 75A |
| Function | Zero cross turn-on |
| Environment_Ambient temperature | -20 to 70℃, storage: -30 to 100℃ (The rated load current capacity is different depending on ambient temperature. Refer to ‘▣ SSR Derating Curve’.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | Approx. 111g(approx. 73g) |
IndMALL Offers Autonics Solid State Power Relay SR1-4475-N at economical Choices. Product Tech Specs of SR1-4475-N include Single-phase, Panel mounting, 90-240VAC~ input voltage, 48-480VAC~ load voltage, 75A load current, Zero cross turn-on function. Take the First Step with a Quote for your requirement of Autonics Solid State Power Relay. Choose us for unparalleled pricing and support over other Dealers & Distributors.
