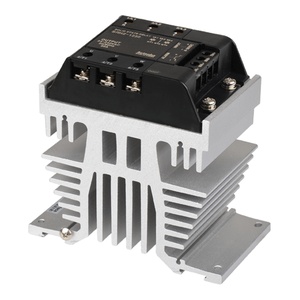

SRH2-1250: Autonics 50A DIN Rail SSR Relay
Technical Specifications of Autonics 50A DIN Rail SSR Relay SRH2-1250
| Spec | Value |
|---|---|
| Control phase | 2-Phase |
| Mounting type | Panel, DIN rail |
| Rated input voltage | 4-30VDC |
| Rated load current | 50A |
Autonics 50A DIN Rail SSR Relay SRH2-1250 Technical Specifications:
| Specification | Value |
|---|---|
| Control phase | 2-Phase |
| Mounting type | Panel, DIN rail |
| Rated input voltage | 4-30VDC |
| Rated load voltage | 24-240VAC~ |
| Dielectric strength | 4,000VAC~ |
| Rated load current | 50A |
| Function | Zero cross turn-on |
| Environment_Ambient temperature | -30 to 80℃(in case of the rated input voltage 90-240VAC~: -30 to 70℃), Storage: -30 to 100℃( The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | approx. 1508g(approx. 1268g) |
Talk to Our Engineer for Autonics 50A DIN Rail SSR Relay SRH2-1250 with exclusive offers. Core System Specifications of SRH2-1250 are 2-Phase, Panel, DIN rail mounting, 4-30VDC input voltage, 24-240VAC~ load voltage, 50A load current, Zero cross turn-on function. Don't Miss Out on a Quote for your requirement of Autonics 50A DIN Rail SSR Relay. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
