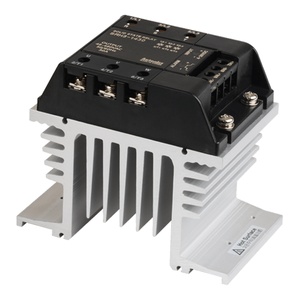

SRH3-1230: Autonics 220V 30A Relay Switch
Technical Specifications of Autonics 220V 30A Relay Switch SRH3-1230
| Spec | Value |
|---|---|
| Control phase | 3-Phase |
| Mounting type | Panel, DIN rail |
| Rated input voltage | 4-30VDC |
| Rated load current | 30A |
Autonics 220V 30A Relay Switch SRH3-1230 Technical Specifications:
| Specification | Value |
|---|---|
| Control phase | 3-Phase |
| Mounting type | Panel, DIN rail |
| Rated input voltage | 4-30VDC |
| Rated load voltage | 24-240VAC~ |
| Dielectric strength | 2,500VAC~ |
| Rated load current | 30A |
| Function | Zero cross turn-on |
| Environment_Ambient temperature | -30 to 80℃(in case of the rated input voltage 90-240VAC~: -30 to 70℃), Storage: -30 to 100℃( The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | approx. 896g(approx. 686g) |
Obtain a Quote for Autonics 220V 30A Relay Switch SRH3-1230 at economical prices. Specifications Overview for SRH3-1230 reveals 3-Phase, Panel, DIN rail mounting, 4-30VDC input voltage, 24-240VAC~ load voltage, 30A load current, Zero cross turn-on function. Take the First Step with a Quote for your requirement of Autonics 220V 30A Relay Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
