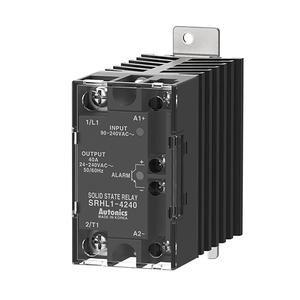

SRHL1-4240: Autonics 240VAC DIN Rail SSR
Technical Specifications of Autonics 240VAC DIN Rail SSR SRHL1-4240
| Spec | Value |
|---|---|
| Control phase | Single-phase |
| Mounting type | Panel, DIN rail |
| Rated input voltage | 90-240VAC~ |
| Rated load current | 40A |
Autonics 240VAC DIN Rail SSR SRHL1-4240 Technical Specifications:
| Specification | Value |
|---|---|
| Control phase | Single-phase |
| Mounting type | Panel, DIN rail |
| Rated input voltage | 90-240VAC~ |
| Rated load voltage | 24-240VAC~ |
| Dielectric strength | • Input-output: 2500VAC 50/60Hz for 1 min, • Input/output-case: 4000VAC 50/60Hz for 1 min |
| Rated load current | 40A |
| Function | Zero cross turn-on |
| Environment_Ambient temperature | -30 to 70℃, storage: -30 to 100℃ (The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.) |
| Environment_Ambient humidity | 45 to 85% RH, storage: 45 to 85% RH |
| Weight | Approx. 468g(approx. 372g) |
Call us for Autonics 240VAC DIN Rail SSR SRHL1-4240 at the best rates. Technical Attributes of SRHL1-4240 are Single-phase, Panel, DIN rail mounting, 90-240VAC~ input voltage, 24-240VAC~ load voltage, 40A load current, Zero cross turn-on function. Unlock Exclusive Pricing with a Quote for your requirement of Autonics 240VAC DIN Rail SSR. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
