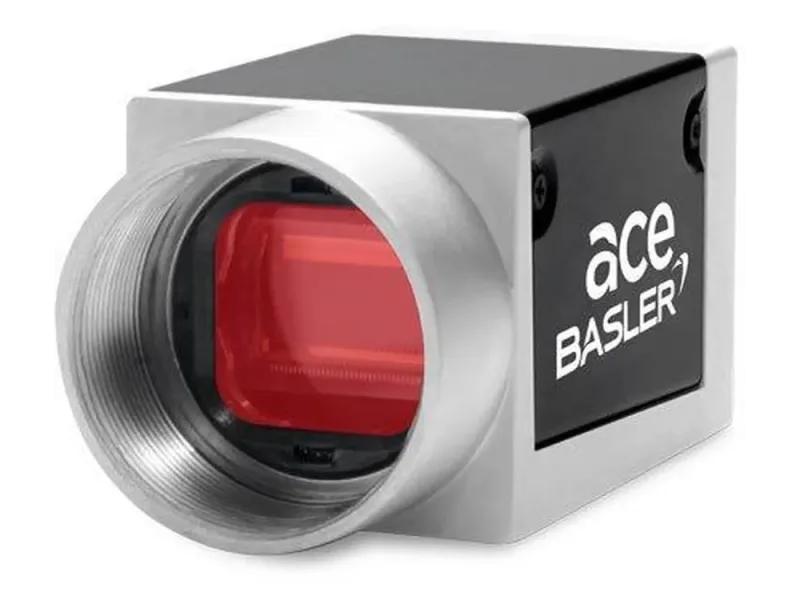

acA1600-60gc (CS-Mount): 106587 - Basler Area Scan Camera with 1 Digital Input
Technical Specifications of Basler Area Scan Camera with 1 Digital Input acA1600-60gc (CS-Mount) 106587:
| Spec | Value |
|---|---|
| Sensor | EV76C570 |
| Sensor size | 7.2 mm × 5.4 mm |
| Mount | C-mount |
| Cable Length | 5 m |
Basler Area Scan Camera with 1 Digital Input acA1600-60gc (CS-Mount), 106587 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace Classic |
| Products Line | Standard |
| Camera Category | Area Scan Camera |
| Sensor Vendor | e2v |
| Sensor | EV76C570 |
| Shutter | Global & Rolling Shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 9 mm |
| Sensor Type | CMOS |
| Sensor Size | 7.2 mm × 5.4 mm |
| Resolution (H x V) | 1600 px × 1200 px |
| Resolution | 2 MP |
| Pixel Size (H x V) | 4.5 μm × 4.5 μm |
| Frame rate | 60 fps |
| Mono/Color | Color |
| Spectrum | Visible |
| Interface | 10GigE |
| Image Data Interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Pixel Bit Depth | 12 bits |
| Exposure Control | programmable via the camera API |
| Digital Input | 1 |
| Power Supply | PoE or 12 VDC |
| Power Requirements (typical) | 2.1 W |
| Power Consumption PoE | 2.7 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 42 mm x 29 mm x 29 mm |
| Weight | 90 g |
| Lens Mount | CS-mount |
| Operating Temperature | 0 °C - 50 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 12 mm |
| Working Distance | 100 mm |
| Type | Lens Accessory |
| Cable Length | 5 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| No. of Ports | 1 |
| Data Bandwidth (p.port; Total) | 10 Gbps; 10 Gbps |
| Synchronization | Ethernet connection, free-run, hardware trigger |
| Digital Output | 1 |
Mail Us for your needs in Basler Area Scan Camera with 1 Digital Input acA1600-60gc (CS-Mount) part no: 106587 with budget-friendly prices. The Main Technical Parameters of acA1600-60gc (CS-Mount), 106587 inludce Product Family offers the ace Classic and Standard series, featuring a 2 MP resolution at 60 fps. The camera utilizes a 10GigE interface and supports Power over Ethernet PoE or 12 VDC power supply options. Designed for durability, the camera is housed in a robust Box-type enclosure with a CS-mount lens interface. It operates efficiently within a temperature range of 0 °C - 50 °C making it suitable for various industrial environments. The focal length is 12 mm with a working distance of 100 mm and a cable length of 5 m. The camera operates at a peak wavelength of 625 nm. Customize Your Experience with a Quote for your requirement of Basler Area Scan Camera with Programmable via Camera API. Experience the difference with our competitive pricing and superior support over other Suppliers.
