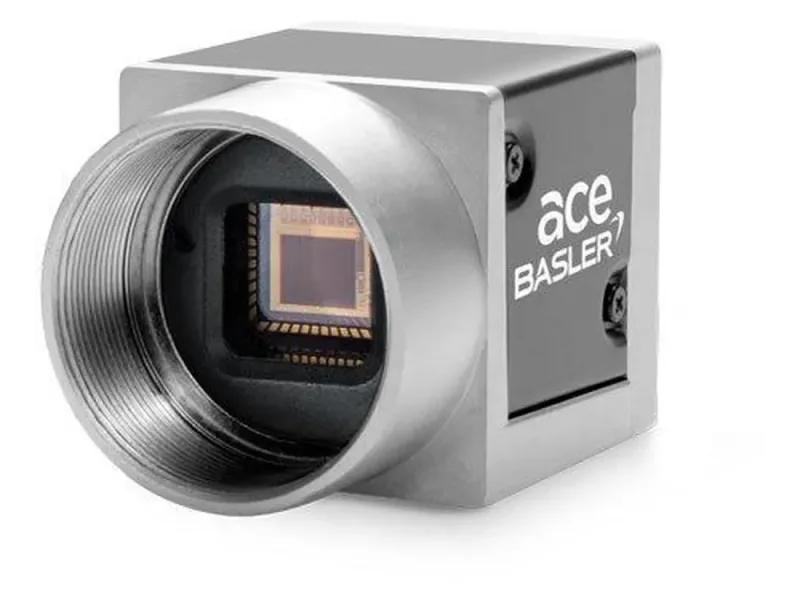

acA1920-25um: 106228 - Basler Area Scan Camera with Box Housing
Technical Specifications of Basler Area Scan Camera with Box Housing acA1920-25um 106228:
| Spec | Value |
|---|---|
| Sensor | MT9P031 |
| Sensor size | 4.22 mm × 2.38 mm |
| Mount | C-mount |
| Cable Length | 10 m |
Basler Area Scan Camera with Box Housing acA1920-25um, 106228 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace Classic |
| Products Line | Standard |
| Camera Category | Area Scan Camera |
| Sensor Vendor | onsemi |
| Sensor | MT9P031 |
| Shutter | Rolling Shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 4.84 mm |
| Sensor Type | CMOS |
| Sensor Size | 4.22 mm × 2.38 mm |
| Resolution (H x V) | 1920 px × 1080 px |
| Resolution | 2 MP |
| Pixel Size (H x V) | 2.2 μm × 2.2 μm |
| Frame rate | 26 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency (typical/minimal) | 56 % (typical) |
| Dark Noise (typical/maximal) | 6.4 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 6.7 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 60.3 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 38.3 dB (typical) |
| Interface | USB 3.0 |
| Image Data Interface | USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) |
| Pixel Bit Depth | 12 bits |
| Exposure Control | hardware trigger, programmable via the camera API |
| Digital Input | 1 |
| Power Supply | Via USB 3.0 interface |
| Power Requirements (typical) | 2.2 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 29.3 mm x 29 mm x 29 mm |
| Weight | 80 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 12 mm |
| Working Distance | 100 mm |
| Type | I/O / Power Cable |
| Cable Length | 10 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 5 Gbps (625 MB/s); 5 Gbps (625 MB/s) |
| Synchronization | free-run, hardware trigger, software trigger |
| Digital Output | 1 |
| General Purpose I/O | 2 |
Call us for Basler Area Scan Camera with Box Housing acA1920-25um part no: 106228 at the best rates. Technical Attributes of acA1920-25um, 106228 are Product Family offers the ace Classic and Standard series, featuring a 2 MP resolution at 26 fps. The camera utilizes a USB 3.0 interface and supports Power over Ethernet Via USB 3.0 interface power supply options. Designed for durability, the camera is housed in a robust Box-type enclosure with a C-mount lens interface. It operates efficiently within a temperature range of 0 °C - 50 °C making it suitable for various industrial environments. The focal length is 12 mm with a working distance of 100 mm and a cable length of 10 m. The camera operates at a peak wavelength of 625 nm. Unlock Exclusive Pricing with a Quote for your requirement of Basler Area Scan Camera with Box Housing. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
