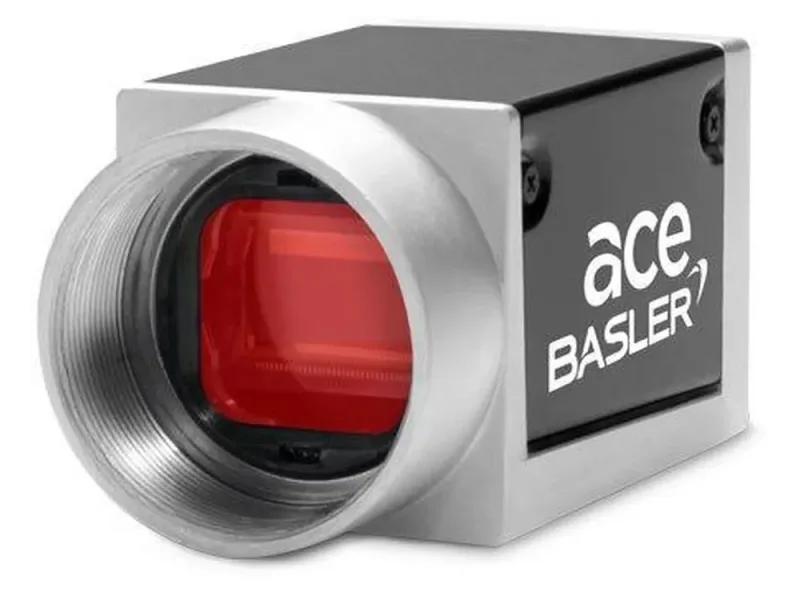

acA2000-340kc: 105703 - Basler Area Scan Camera with 340 fps Frame Rate
Technical Specifications of Basler Area Scan Camera with 340 fps Frame Rate acA2000-340kc 105703:
| Spec | Value |
|---|---|
| Sensor | CMV2000 |
| Sensor size | 11.26 mm × 5.98 mm |
| Mount | C-mount |
| Cable Length | 3 m |
Basler Area Scan Camera with 340 fps Frame Rate acA2000-340kc, 105703 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace Classic |
| Products Line | Standard |
| Camera Category | Area Scan Camera |
| Sensor Vendor | ams |
| Sensor | CMV2000 |
| Shutter | Global Shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 12.75 mm |
| Sensor Type | CMOS |
| Sensor Size | 11.26 mm × 5.98 mm |
| Resolution (H x V) | 2046 px × 1086 px |
| Resolution | 2 MP |
| Pixel Size (H x V) | 5.5 μm × 5.5 μm |
| Frame rate | 340 fps |
| Mono/Color | Color |
| Spectrum | Visible |
| Quantum Efficiency (typical/minimal) | 67.45 % (typical) |
| Dark Noise (typical/maximal) | 13.9 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 9.3 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 56.5 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 39.7 dB (typical) |
| Interface | Camera Link |
| Pixel Bit Depth | 10 bits, 12 bits |
| Exposure Control | trigger width or timed |
| Power Supply | PoCL or 12 VDC |
| Power Requirements (typical) | 3 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 43.5 mm x 29 mm x 29 mm |
| Weight | 100 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 35 mm |
| Working Distance | 200 mm |
| Type | Data Cable |
| Cable Length | 3 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| Synchronization | free-run, hardware trigger, software trigger |
| General Purpose I/O | 1 |
| Camera Link Clock | 32.5 / 48 / 65 / 82 |
Mail Us for your needs in Basler Area Scan Camera with 340 fps Frame Rate acA2000-340kc part no: 105703 with budget-friendly prices. The Main Technical Parameters of acA2000-340kc, 105703 inludce Product Family offers the ace Classic and Standard series, featuring a 2 MP resolution at 340 fps. The camera utilizes a Camera Link interface and supports Power over Ethernet PoCL or 12 VDC power supply options. Designed for durability, the camera is housed in a robust Box-type enclosure with a C-mount lens interface. It operates efficiently within a temperature range of 0 °C - 50 °C making it suitable for various industrial environments. The focal length is 35 mm with a working distance of 200 mm and a cable length of 3 m. The camera operates at a peak wavelength of 625 nm. Customize Your Experience with a Quote for your requirement of Basler Area Scan Camera with 2 MP Resolution. Experience the difference with our competitive pricing and superior support over other Suppliers.
