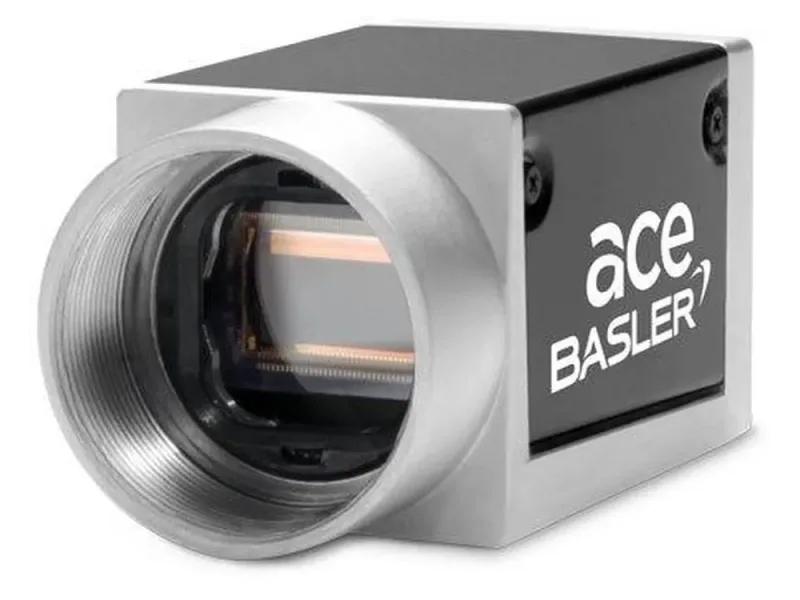

acA2040-180kmNIR: 106333 - Basler Area Scan Camera with 180 fps Frame Rate
Technical Specifications of Basler Area Scan Camera with 180 fps Frame Rate acA2040-180kmNIR 106333:
| Spec | Value |
|---|---|
| Sensor | CMV4000 NIR-enhanced |
| Sensor size | 11.26 mm × 11.26 mm |
| Mount | C-mount |
| Cable Length | 3 m |
Basler Area Scan Camera with 180 fps Frame Rate acA2040-180kmNIR, 106333 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace Classic |
| Products Line | Standard |
| Camera Category | Area Scan Camera |
| Sensor Vendor | ams |
| Sensor | CMV4000 NIR-enhanced |
| Shutter | Global Shutter |
| Sensor Format | 1.2" |
| Sensor Diagonal | 15.92 mm |
| Sensor Type | CMOS |
| Sensor Size | 11.26 mm × 11.26 mm |
| Resolution (H x V) | 2048 px × 2048 px |
| Resolution | 4 MP |
| Pixel Size (H x V) | 5.5 μm × 5.5 μm |
| Frame rate | 180 fps |
| Mono/Color | Mono |
| Spectrum | Visible + NIR |
| Quantum Efficiency (typical/minimal) | 61.89 % (typical) |
| Dark Noise (typical/maximal) | 14 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 12.4 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 59 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 40.9 dB (typical) |
| Interface | Camera Link |
| Pixel Bit Depth | 10 bits, 12 bits |
| Exposure Control | trigger width or timed |
| Power Supply | PoCL or 12 VDC |
| Power Requirements (typical) | 3 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 43.5 mm x 29 mm x 29 mm |
| Weight | 100 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 25 mm |
| Working Distance | 150 mm |
| Type | Data Cable |
| Cable Length | 3 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| Synchronization | free-run, hardware trigger, software trigger |
| General Purpose I/O | 1 |
| Camera Link Clock | 32.5 / 48 / 65 / 82 |
Talk to Our Engineer for Basler Area Scan Camera with 180 fps Frame Rate acA2040-180kmNIR part no: 106333 with exclusive offers. Core System Specifications of acA2040-180kmNIR, 106333 are Product Family offers the ace Classic and Standard series, featuring a 4 MP resolution at 180 fps. The camera utilizes a Camera Link interface and supports Power over Ethernet PoCL or 12 VDC power supply options. Designed for durability, the camera is housed in a robust Box-type enclosure with a C-mount lens interface. It operates efficiently within a temperature range of 0 °C - 50 °C making it suitable for various industrial environments. The focal length is 25 mm with a working distance of 150 mm and a cable length of 3 m. The camera operates at a peak wavelength of 625 nm. Don't Miss Out on a Quote for your requirement of Basler Area Scan Camera with 180 fps Frame Rate. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
