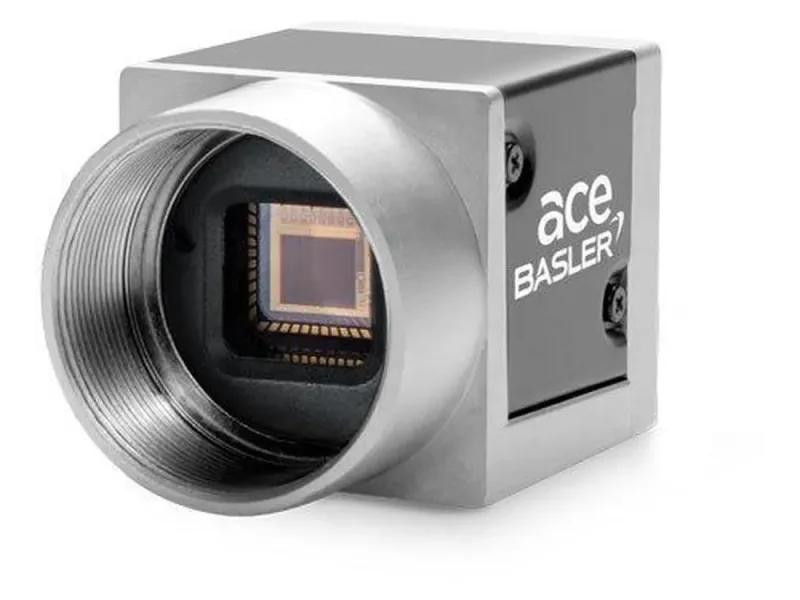

acA800-510um: 106764 - Basler 38.5 dB Area Scan Camera
Technical Specifications of Basler 38.5 dB Area Scan Camera acA800-510um 106764:
| Spec | Value |
|---|---|
| Sensor | PYTHON 500 |
| Sensor size | 3.84 mm × 2.88 mm |
| Mount | C-mount |
| Cable Length | 10 m |
Basler 38.5 dB Area Scan Camera acA800-510um, 106764 Technical Specifications:
| Specification | Value |
|---|---|
| Product Family | ace U |
| Products Line | Standard |
| Camera Category | Area Scan Camera |
| Sensor Vendor | onsemi |
| Sensor | PYTHON 500 |
| Shutter | Global Shutter |
| Sensor Format | 2/3" |
| Sensor Diagonal | 4.8 mm |
| Sensor Type | CMOS |
| Sensor Size | 3.84 mm × 2.88 mm |
| Resolution (H x V) | 800 px × 600 px |
| Resolution | 0.48 MP |
| Pixel Size (H x V) | 4.8 μm × 4.8 μm |
| Frame rate | 511 fps |
| Mono/Color | Mono |
| Spectrum | Visible |
| Quantum Efficiency (typical/minimal) | 52 % (typical) |
| Dark Noise (typical/maximal) | 10.7 e¯ (typical) |
| Saturation Capacity (typical/minimal) | 7 ke¯ (typical) |
| Dynamic Range (typical/minimal) | 56.3 dB (typical) |
| Signal-to-Noise Ratio (typical/minimal) | 38.5 dB (typical) |
| Interface | USB 3.0 |
| Image Data Interface | USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) |
| Pixel Bit Depth | 10 bits |
| Exposure Control | hardware trigger, programmable via the camera API |
| Digital Input | 1 |
| Power Supply | Via USB 3.0 interface |
| Power Requirements (typical) | 3 W |
| Housing Type | Box |
| Housing Size (L x W x H) | 29.3 mm x 29 mm x 29 mm |
| Weight | 80 g |
| Lens Mount | C-mount |
| Operating Temperature | 0 °C - 50 °C |
| Attribute Name | Attribute Value |
| Mount | C-mount |
| Focal Length | 12 mm |
| Working Distance | 100 mm |
| Type | Lens Accessory |
| Cable Length | 10 m |
| LED Color | Red |
| Peak Wavelength (typical) | 625 nm |
| Protection Class | IP54 |
| No. of Ports | 4 |
| Data Bandwidth (p.port; Total) | 5 Gbps (625 MB/s); 5 Gbps (625 MB/s) |
Reach Us by Email for Basler 38.5 dB Area Scan Camera acA800-510um part no: 106764 at Discounted Rates. Key Technical Features of acA800-510um, 106764 are Product Family offers the ace U and Standard series, featuring a 0.48 MP resolution at 511 fps. The camera utilizes a USB 3.0 interface and supports Power over Ethernet Via USB 3.0 interface power supply options. Designed for durability, the camera is housed in a robust Box-type enclosure with a C-mount lens interface. It operates efficiently within a temperature range of 0 °C - 50 °C making it suitable for various industrial environments. The focal length is 12 mm with a working distance of 100 mm and a cable length of 10 m. The camera operates at a peak wavelength of 625 nm. Navigate Your Needs with a Quote for your requirement of Basler 38.5 dB Area Scan Camera. Our pricing and support are unrivaled, especially when compared to other Competitors.
