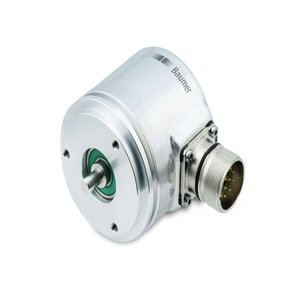

EIL576S-S: Baumer 2500 PPR Incremental Rotary Encoder
Technical Specifications of Baumer 2500 PPR Incremental Rotary Encoder EIL576S-S:
| Spec | Value |
|---|---|
| Voltage supply | 24 VDC +20/-50 % |
| Sensing method | Optical |
| Size (flange) | ø58 mm |
| Connection | Flange connector M12, 8-pin, Flange connector M23, 12-pin |
🛠️ Get Quotes Instantly from Baumer Vendors
Baumer 2500 PPR Incremental Rotary Encoder EIL576S-S Technical Specifications:
| Specification | Value |
|---|---|
| Voltage supply | 24 VDC +20/-50 % |
| Consumption w/o load | ≤30 mA |
| Pulses per revolution | 1000 … 2500 |
| Reference signal | Zero pulse 70...720° electr. |
| Sensing method | Optical |
| Output frequency | ≤150 kHz |
| Output signals | A 90° B + inverted |
| Output stages | Linedriver/RS422, Push-pull short-circuit proof |
| Size (flange) | ø58 mm |
| Shaft type | ø6 mm solid shaft (synchro flange), ø10 mm solid shaft (clamping flange) |
| Protection EN 60529 | IP 54 (without shaft seal), IP 65 (with shaft seal) |
| Operating speed | ≤10000 rpm |
| Starting torque | ≤0.015 Nm (+25 °C, IP 54), ≤0.03 Nm (+25 °C, IP 65) |
| Material | Housing: aluminium, Flange: aluminium |
| Operating temperature | -25...+85 °C |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration 10 g, 16-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
| Connection | Flange connector M12, 8-pin, Flange connector M23, 12-pin |
| Weight approx. | 250 g |
Give Us a Call for Baumer 2500 PPR Incremental Rotary Encoder EIL576S-S at the lowest pricing. In-depth Technical Analysis of EIL576S-S feature voltage supply of 24 VDC +20/-50 % and a low power consumption of ≤30 mA without load. These encoders use Optical sensing for accurate measurement and provide output frequencies of ≤150 kHz. The available output stages include Linedriver/RS422, Push-pull short-circuit proof. The encoders feature a ø58 mm flange size and operate at speeds of up to ≤10000 rpm. The Housing: aluminium, Flange: aluminium. Connection options include Flange connector M12, 8-pin, Flange connector M23, 12-pin. The approximate weight is 250 g. Elevate Your Project with a Quote for your requirement of Baumer 2500 PPR Incremental Rotary Encoder. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
