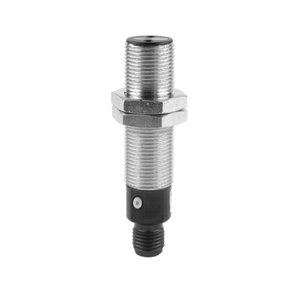

FZAM 18N6460/S14: 10128875 - Baumer Industrial Sensor For Intensity Precision
Technical Specifications of Baumer Industrial Sensor For Intensity Precision FZAM 18N6460/S14 10128875:
| Spec | Value |
|---|---|
| Sensing distance Tw | 60 … 430 mm |
| Output function | Light / dark operate, alarm |
| Output circuit | NPN |
| Connection types | Connector M12 4 pin |
Baumer Industrial Sensor For Intensity Precision FZAM 18N6460/S14, 10128875 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Intensity difference |
| Sensing distance Tw | 60 … 430 mm |
| Light indicator | LED green |
| Light source | Pulsed infrared diode |
| Wave length | 880 nm |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 55 mA |
| Current consumption typ. | 40 mA |
| Voltage drop Vd | <1.8 VDC |
| Output function | Light / dark operate, alarm |
| Output circuit | NPN |
| Output current | 200 mA |
| Width / diameter | 18 mm |
| Height / length | 60 mm |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated / PC |
| Front (optics) | PC |
| Connection types | Connector M12 4 pin |
| Protection class | IP 67 |
| Operating temperature | -25 … +55 °C |
| Sensing distance Tw (with doubling lense) | 80 … 800 mm |
| Alignment / soiled lens indicator | Flashing light indicator |
| Output indicator | LED yellow |
Call us for Baumer Industrial Sensor For Intensity Precision FZAM 18N6460/S14 part no: 10128875 at the best rates. Technical Attributes of FZAM 18N6460/S14, 10128875 are Intensity difference Sensor, engineered for precise detection with a sensing distance of 60 … 430 mm. The sensor utilizes a Pulsed infrared diode with a wavelength of 880 nm, ensuring accurate and rapid response times of less than < 1 ms. It operates within a voltage supply range of 10 … 30 VDC, offering Light / dark operate, alarm functionality with a NPN output circuit capable of handling up to 200 mA of output current. Measuring 18 mm in width and 60 mm in height, the compact Cylindrical threaded design is housed in durable Brass nickel plated / PC materials. The connection is made via a Connector M12 4 pin. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Industrial Sensor For Intensity Precision. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
