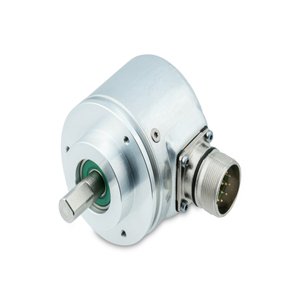

GM400: Baumer Singleturn 14 bit Resolution Absolute Encoder
Technical Specifications of Baumer Singleturn 14 bit Resolution Absolute Encoder GM400:
| Spec | Value |
|---|---|
| Voltage Supply | 10...30 VDC, 5 VDC ±10 % |
| Interface | SSI, Incremental A 90° B (optional) |
| Shaft type | ø10 mm solid shaft |
| Connection | Connector M23, 12-pin, Connector M12, 8-pin, Cable 1 m |
Baumer Singleturn 14 bit Resolution Absolute Encoder GM400 Technical Specifications:
| Specification | Value |
|---|---|
| Voltage supply | 10...30 VDC, 5 VDC ±10 % |
| Reverse polarity protection | Yes (10..30 VDC) / No (5 VDC) |
| Consumption w/o load | ≤50 mA (24 VDC), ≤80 mA (5 VDC) |
| Interface | SSI, Incremental A 90° B (optional) |
| Function | Multiturn |
| Total resolution | |
| Absolute accuracy | ±0.025 ° |
| Sensing method | Optical |
| Status indicator | |
| Size (flange) | ø58 mm |
| Shaft type | ø10 mm solid shaft |
| Protection EN 60529 | IP 54 (without shaft seal), IP 65 (with shaft seal) |
| Operating speed | ≤10000 rpm (mechanical), ≤6000 rpm (electric) |
| Starting acceleration | ≤1000 U/s² |
| Starting torque | ≤0.015 Nm (+25 °C, IP 54), ≤0.03 Nm (+25 °C, IP 65) |
| Rotor moment of inertia | 20 gcm² |
| Material | Housing: aluminium, Flange: aluminium |
| Operating temperature | -25...+85 °C, -40...+85 °C (optional) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 200 g, 6 ms |
| Weight approx. | 400 g |
| Connection | Connector M23, 12-pin, Connector M12, 8-pin, Cable 1 m |
Get A Quote for Baumer Singleturn 14 bit Resolution Absolute Encoder GM400 part no: N/A at unbeatable prices. Detailed Specifications of GM400, N/A feature voltage supply of 10...30 VDC, 5 VDC ±10 %. These encoders feature the SSI, Incremental A 90° B (optional) interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤10000 rpm (mechanical), ≤6000 rpm (electric) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Flange: aluminium, provides robust protection. The connection is facilitated by Connector M23, 12-pin, Connector M12, 8-pin, Cable 1 m, ensuring secure and efficient data transmission. Match Your Needs with a Quote for your requirement of Baumer Singleturn 14 bit Resolution Absolute Encoder. Our pricing and support are unrivaled, especially when compared to other Distributors.
