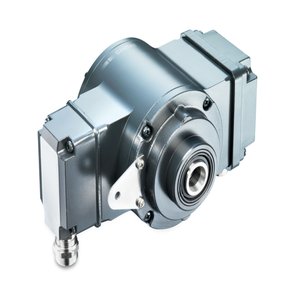

HOG 10 + ESL 93: Baumer Encoder With Integrated Electronic Speed Switch
Technical Specifications of Baumer Encoder With Integrated Electronic Speed Switch HOG 10 + ESL 93:
| Spec | Value |
|---|---|
| Voltage Supply | 12 VDC ±10 % |
| Size (flange) | ø105 mm |
| Connection | 2x terminal box, 3x terminal box (with option M) |
Baumer Encoder With Integrated Electronic Speed Switch HOG 10 + ESL 93 Technical Specifications:
| Specification | Value |
|---|---|
| Voltage supply | 12 VDC ±10 % |
| Consumption w/o load | ≤5 mA |
| Pulses per revolution | 300 … 5000 |
| Phase shift | 90 ° ±20° |
| Duty cycle | 40…60 % |
| Reference signal | Zero pulse, width 90° |
| Output frequency | ≤120 kHz, ≤300 kHz (on request) |
| Output signals | K1, K2, K0 + inverted, Error output (option EMS) |
| Output stages | HTL, TTL/RS422 |
| Shaft insulation | 2.8 kV |
| Transmission length | ≤350 m at 100 kHz (HTL-P), ≤550 m at 100 kHz (TTL) |
| Switching accuracy | ± 4 % (≤1500 rpm), ± 2 % (>1500 rpm) |
| Switching outputs | 3 outputs, speed control |
| Size (flange) | ø105 mm |
| Shaft type | ø16...20 mm (blind hollow shaft), ø17 mm (cone shaft 1:10) |
| Admitted shaft load | ≤450 N axial, ≤600 N radial |
| Protection EN 60529 | IP 66 |
| Range of switching speed (ns) | 3x 200...5000 rpm |
| Operating torque typ. | 6 Ncm |
| Rotor moment of inertia | 680 gcm² |
| Material | Housing: aluminium die-cast, Shaft: stainless steel |
| Operating temperature | -20...+85 °C |
| Resistance | IEC 60068-2-6, Vibration 5 g, 10-2000 Hz, IEC 60068-2-27, Shock 50 g, 6 ms |
| Corrosion protection | IEC 60068-2-52 Salt mist, for ambient conditions C4 according to ISO 12944-2 |
| Connection | 2x terminal box, 3x terminal box (with option M) |
| Weight approx. | 2.3 kg, 2.5 kg (with option M) |
| Operating speed | ≤5000 rpm |
| Switching delay time | ≤40 ms |
Mail Us for your needs in Baumer Encoder With Integrated Electronic Speed Switch HOG 10 + ESL 93 with budget-friendly prices. The Main Technical Parameters of N/A, inludce voltage supply of 12 VDC ±10 %, and consumption of ≤5 mA without load. These encoders offer a range of pulses per revolution from 300 … 5000 providing versatility in precision. The output stages include HTL, TTL/RS422 for flexible integration. The encoders come in a robust ø105 mm flange size and can handle shaft loads of up to ≤450 N axial, ≤600 N radial. With an operating torque of 6 Ncm, they are designed for smooth performance. The Housing: aluminium die-cast, Shaft: stainless steel and operates in temperatures ranging from -20...+85 °C. Connection options include 2x terminal box, 3x terminal box (with option M). Customize Your Experience with a Quote for your requirement of Baumer Encoder With Integrated Electronic Speed Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
