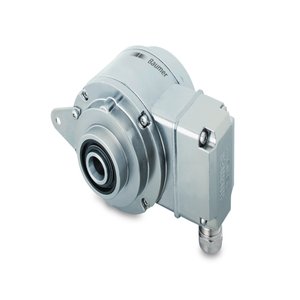

HOG 11 - DNV: Baumer Absolute Encoder With Blind Shaft
Technical Specifications of Baumer Absolute Encoder With Blind Shaft HOG 11 - DNV:
Spec | Value |
---|---|
Voltage supply | 9...30 VDC, 5 VDC ±5 % |
Consumption w/o load | ≤100 mA |
Baumer Absolute Encoder With Blind Shaft HOG 11 - DNV Technical Specifications:
Specification | Value |
---|---|
Voltage supply | 9...30 VDC, 5 VDC ±5 % |
Consumption w/o load | ≤100 mA |
Sensing method | Optical |
Size (flange) | ø105 mm |
Shaft type | ø16 mm (blind hollow shaft) |
Protection EN 60529 | IP 67 |
Operating speed | ≤6000 rpm (mechanical) |
Operating torque typ. | 6 Ncm |
Rotor moment of inertia | 340 gcm² |
Admitted shaft load | ≤250 N axial, ≤400 N radial |
Material | Housing: aluminium die-cast, Shaft: stainless steel |
Operating temperature | -40...+100 °C |
Weight approx. | 1.6 kg |
Connection | Terminal box |
Mail Us for your needs in Baumer Absolute Encoder With Blind Shaft HOG 11 - DNV with budget-friendly prices. The Main Technical Parameters of HOG 11 - DNV, inludce voltage supply of 9...30 VDC, 5 VDC ±5 % and low power consumption of ≤100 mA without load. These encoders use Optical sensing for accurate performance and come in a ø105 mm flange size. With an IP 67 protection rating according to EN 60529, they are ideal for harsh environments. The operating speed reaches up to ≤6000 rpm (mechanical), and the typical operating torque is 6 Ncm, ensuring smooth and reliable operation. The encoders feature a durable Housing: aluminium die-cast, Shaft: stainless steel shaft for added strength. Connection options include an Terminal box output. Customize Your Experience with a Quote for your requirement of Baumer Absolute Encoder With Blind Shaft. Experience the difference with our competitive pricing and superior support over other Suppliers.
