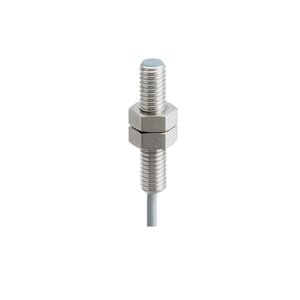

IFRM 08N3701/L: 10212838 - Baumer Cable 2m Inductive Proximity Switch
Technical Specifications of Baumer Cable 2m Inductive Proximity Switch IFRM 08N3701/L 10212838:
| Spec | Value |
|---|---|
| Nominal sensing distance Sn | 2 mm |
| Mounting type | Flush |
| Output circuit | NPN break function (NC) |
| Connection types | Cable, L=2 m |
Baumer Cable 2m Inductive Proximity Switch IFRM 08N3701/L, 10212838 Technical Specifications:
| Specification | Value |
|---|---|
| Mounting type | Flush |
| Nominal sensing distance Sn | 2 mm |
| Hysteresis | 3 … 20 % of Sr |
| Switching frequency | 5 kHz |
| Voltage supply range +Vs | 6 … 36 VDC |
| Current consumption max. (no load) | 12 mA |
| Output circuit | NPN break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 200 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Stainless steel |
| Dimension | 8 mm |
| Housing length | 30 mm |
| Connection types | Cable, L=2 m |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 67 |
| Output indicator | LED red |
Get A Quote for Baumer Cable 2m Inductive Proximity Switch IFRM 08N3701/L part no: 10212838 at the best price. Here are the brief Technical Specifications of IFRM 08N3701/L, 10212838 are Flush Mounting type. The sensor features a nominal sensing distance of 2 mm and a high switching frequency of 5 kHz, ensuring rapid response times. It operates within a voltage supply range of 6 … 36 VDC, with a low current consumption of just 12 mA. The output circuit is a NPN break function (NC), capable of handling up to 200 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Stainless steel, providing durability in demanding environments. With a compact dimension of 8 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Cable, L=2 m. It's Time to get a Quote for your requirement of Baumer Cable 2m Inductive Proximity Switch . We guarantee unmatched pricing and unparalleled support compared to other Distributors.
