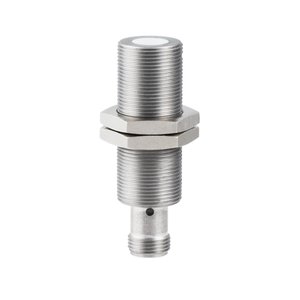

Baumer IR18.D03K-F60.IA1E.7FO/B015: Inductive Distance Sensor
Technical Specifications of Baumer Inductive Distance Sensor IR18.D03K-F60.IA1E.7FO/B015:
Spec | Value |
---|
Measuring distance Sd | 2.75 … 3 mm |
Resolution | < 0.00025 mm (stat.), < 0.0005 mm (dynam.) |
Voltage supply range +Vs | 8 … 30 VDC |
Connection types | Connector M12 |
Baumer Inductive Distance Sensor IR18.D03K-F60.IA1E.7FO/B015 Technical Specifications
Specification | Value |
---|
Mounting type | Flush |
Measuring distance Sd | 2.75 … 3 mm |
Resolution | < 0.00025 mm (stat.), < 0.0005 mm (dynam.) |
Repeat accuracy | 0.001 mm |
Linearity error | ± 5 µm |
Temperature drift | ± 4 % (Full Scale: +10 ... +30 °C), ± 12 % (Full Scale: -10 ... +60 °C) |
Response time (factory characteristic) | < 3 ms |
Voltage supply range +Vs | 8 … 30 VDC |
Current consumption max. (no load) | 15 mA |
Output circuit | Current output |
Output signal | 4 ... 20 mA |
Load resistance | < 25 Ohm/V * Vs |
Short circuit protection | Yes |
Reverse polarity protection | Yes |
Design | Cylindrical threaded |
Material (sensing face) | Ceramic |
Housing material | Steel nickel plated |
Dimension | 18 mm |
Housing length | 60 mm |
Connection types | Connector M12 |
Tightening torque max. | 40 Nm |
Operating temperature | -10 … +60 °C |
Protection class | IP 67 |
