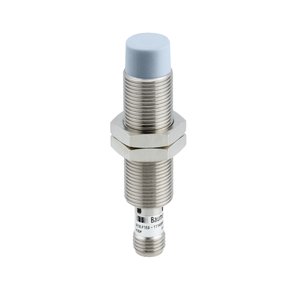

IR18.P15S-N60.PC1Z.7BO: 11149163 - Baumer Switch In Automation Control
Technical Specifications of Baumer Switch In Automation Control IR18.P15S-N60.PC1Z.7BO 11149163:
| Spec | Value |
|---|---|
| Nominal sensing distance Sn | 15 mm |
| Mounting type | Non-flush |
| Output circuit | PNP break function (NC) |
| Connection types | Connector M12 |
Baumer Switch In Automation Control IR18.P15S-N60.PC1Z.7BO, 11149163 Technical Specifications:
| Specification | Value |
|---|---|
| Mounting type | Non-flush |
| Nominal sensing distance Sn | 15 mm |
| Hysteresis | 3 … 20 % of Sr |
| Output indicator | 3 port LED red |
| Switching frequency | 400 Hz |
| Voltage supply range +Vs | 6 … 36 VDC |
| Current consumption max. (no load) | 10 mA |
| Output circuit | PNP break function (NC) |
| Voltage drop Vd | <2 VDC |
| Output current | 100 mA |
| Design | Cylindrical threaded |
| Material (sensing face) | PBT |
| Housing material | Brass nickel plated |
| Dimension | 18 mm |
| Housing length | 60 mm |
| Connection types | Connector M12 |
| Tightening torque max. | 40 Nm |
| Operating temperature | 0 … +65 °C |
| Protection class | IP 67 |
Talk to Our Engineer for Baumer Switch In Automation Control IR18.P15S-N60.PC1Z.7BO part no: 11149163 with exclusive offers. Core System Specifications of IR18.P15S-N60.PC1Z.7BO, 11149163 are Non-flush Mounting type. The sensor features a nominal sensing distance of 15 mm and a high switching frequency of 400 Hz, ensuring rapid response times. It operates within a voltage supply range of 6 … 36 VDC, with a low current consumption of just 10 mA. The output circuit is a PNP break function (NC), capable of handling up to 100 mA of output current. The sensor's design includes a robust Cylindrical threaded housing made from high-grade Brass nickel plated, providing durability in demanding environments. With a compact dimension of 18 mm, it fits seamlessly into tight spaces. The sensor is equipped with a reliable Connector M12. Don't Miss Out on a Quote for your requirement of Baumer Switch In Automation Control. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
