MAGRES EAM580-SY - PROFINET: Baumer PROFINET IO Absolute Encoder

Technical Specifications of Baumer PROFINET IO Absolute Encoder MAGRES EAM580-SY - PROFINET:

Spec	Value
Voltage Supply	10...30 VDC
Interface	PROFINET IO
Shaft type	ø6 x 10 mm, solid shaft with flat
Connection	Flange connector 3xM12

Baumer PROFINET IO Absolute Encoder MAGRES EAM580-SY - PROFINET Technical Specifications:

Specification	Value
Voltage supply	10...30 VDC
Reverse polarity protection
Consumption w/o load
Interface	PROFINET IO
Function	Multiturn
Total resolution
Absolute accuracy	±0.15 ° (+20 ±15 °C), ±0.25 ° (-40...+85 °C)
Sensing method	Magnetic
Status indicator	4x LED integrated in housing
Size (flange)	ø58 mm
Shaft type	ø6 x 10 mm, solid shaft with flat
Protection EN 60529	IP 65 (without shaft seal), IP 67 (with shaft seal)
Operating speed	≤6000 rpm
Starting acceleration
Starting torque	≤2 Ncm (+20 °C, IP 65), ≤2.5 Ncm (+20 °C, IP 67)
Rotor moment of inertia
Material	Housing: steel zinc-coated, Flange: aluminium, Shaft: stainless steel
Operating temperature	-40...+85 °C (see general information)
Relative humidity	95 %
Resistance	EN 60068-2-6, Vibration 30 g, 10-2000 Hz, EN 60068-2-27, Shock 250 g, 6 ms
Weight approx.	360 g
Connection	Flange connector 3xM12

Obtain a Quote for Baumer PROFINET IO Absolute Encoder MAGRES EAM580-SY - PROFINET at economical prices. Specifications Overview for MAGRES EAM580-SY - PROFINET, reveals voltage supply of 10...30 VDC. These encoders feature the PROFINET IO interface, Multiturn functionality, and Magnetic sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm operations, ensuring reliable functionality in demanding environments. The Housing: steel zinc-coated, Flange: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector 3xM12, ensuring secure and efficient data transmission. Take the First Step with a Quote for your requirement of Baumer PROFINET IO Absolute Encoder. Our commitment to better pricing and exceptional support sets us apart from other Competitors.

MAGRES EAM580-SY – PROFINET

4.5

https://www.indmall.in/wp-content/uploads/baumer/rotary-encoders/baumer-magreseam580-sy—profinet.jpg

https://www.indmall.in/wp-content/uploads/2023/11/call-now-to-indmall-automation.jpg.webp

https://www.indmall.in/wp-content/uploads/baumer/rotary-encoders/baumer-magreseam580-sy—profinet.jpg

Magnetic

PROFINET IO

ø6 x 10 mm, solid shaft with flat

Obtain a Quote for Baumer PROFINET IO Absolute Encoder MAGRES EAM580-SY – PROFINET at economical prices. Specifications Overview for MAGRES EAM580-SY – PROFINET, reveals voltage supply of 10…30 VDC. These encoders feature the PROFINET IO interface, Multiturn functionality, and Magnetic sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm operations, ensuring reliable functionality in demanding environments. The Housing: steel zinc-coated, Flange: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector 3xM12, ensuring secure and efficient data transmission. Take the First Step with a Quote for your requirement of Baumer PROFINET IO Absolute Encoder. Our commitment to better pricing and exceptional support sets us apart from other Competitors.

PROFINET IO

4x LED integrated in housing

ø58 mm

IP 65 (without shaft seal), IP 67 (with shaft seal)

≤6000 rpm

-40…+85 °C (see general information)

360 g

https://www.indmall.in/baumer-magres-eam580-sy—ethernet-ip/

https://www.indmall.in/wp-content/uploads/baumer/rotary-encoders/baumer-magreseam580-sy—ethercat.jpg

https://www.indmall.in/wp-content/uploads/baumer/rotary-encoders/baumer-magreseam580-sy—canopen®.jpg

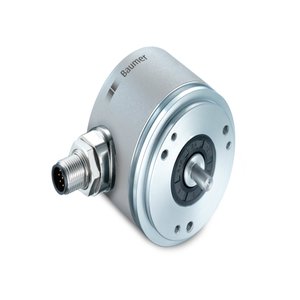

MAGRES EAM580-SY – CANopen®
