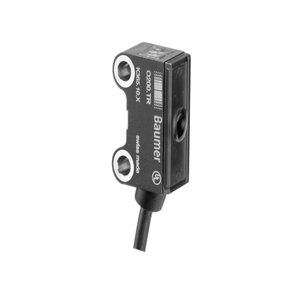

O200.TR-ZZZX.72NV: 11210278 - Baumer Industrial Through Beam Sensor
Technical Specifications of Baumer Industrial Through Beam Sensor O200.TR-ZZZX.72NV 11210278:
| Spec | Value |
|---|---|
| Type | Through beam sensor |
| Nominal range Sn | 6 m |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
Baumer Industrial Through Beam Sensor O200.TR-ZZZX.72NV, 11210278 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Emitter / receiver | Emitter |
| Actual range Sb | 5 m |
| Nominal range Sn | 6 m |
| Power on indication | LED green |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 20 mA (@ 30 VDC) |
| Current consumption typ. | 16 mA (@ 24 VDC) |
| Reverse polarity protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 25.1 mm |
| Depth | 14.1 mm |
| Design | Rectangular |
| Mechanical mounting | Sleeve smooth (stainless steel) |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Cable characteristics | PVC / PVC 4 x 0,08 mm² |
| Operating temperature | -25 … +50 °C |
| Protection class | IP 67 |
| Light source | Pulsed red LED |
| Wave length | 644 nm |
Get A Quote for Baumer Industrial Through Beam Sensor O200.TR-ZZZX.72NV part no: 11210278 at the best price. Here are the brief Technical Specifications of O200.TR-ZZZX.72NV, 11210278 are Through beam sensor Model Type designed for precise object detection with a nominal range of 6 m. This sensor operates on a voltage supply range of 10 … 30 VDC, with a maximum current consumption of 20 mA (@ 30 VDC) and a typical consumption of 16 mA (@ 24 VDC). The compact Rectangular design features dimensions of 8 mm in width, 25.1 mm in height, and 14.1 mm in depth, ensuring easy installation in various industrial environments. The housing is made from durable Plastic (ASA, PMMA) offering robustness for demanding applications. The sensor connects via a Flylead connector M8 4 pin, L=200 mm making it suitable for seamless integration into your system. With a Emitter. It's Time to get a Quote for your requirement of Baumer Industrial Through Beam Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
