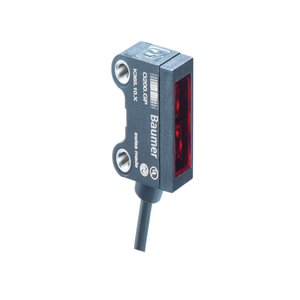

O200.ZR-GW2I.72CV/A014_E026: 11231262 - Baumer Sensor In Protective Housing Material
Technical Specifications of Baumer Sensor In Protective Housing Material O200.ZR-GW2I.72CV/A014_E026 11231262:
| Spec | Value |
|---|---|
| Sensing distance Tw | 20 … 200 mm |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Connection types | Cable 4 pin, 2 m |
Baumer Sensor In Protective Housing Material O200.ZR-GW2I.72CV/A014_E026, 11231262 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Intensity difference |
| Sensing distance Tw | 20 … 200 mm |
| Power on indication | LED green |
| Sensing distance adjustment | IO-Link |
| Alignment optical axis | < 1,5° |
| Light source | Pulsed red LED |
| Wave length | 644 nm |
| Response time / release time | < 0.4 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 45 mA (@ 10 VDC) |
| Current consumption typ. | 16 mA (@ 24 VDC) |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 50 mA |
| Width / diameter | 8 mm |
| Height / length | 25.1 mm |
| Depth | 15.8 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Protection class | IP 67 |
| Operating temperature | -25 … +50 °C |
| Alignment / soiled lens indicator | Flashing output indicator |
| Output indicator | LED yellow |
| Beam type | Point |
Call us for Baumer Sensor In Protective Housing Material O200.ZR-GW2I.72CV/A014_E026 part no: 11231262 at the best rates. Technical Attributes of O200.ZR-GW2I.72CV/A014_E026, 11231262 are Intensity difference Sensor, engineered for precise detection with a sensing distance of 20 … 200 mm. The sensor utilizes a Pulsed red LED with a wavelength of 644 nm, ensuring accurate and rapid response times of less than < 0.4 ms. It operates within a voltage supply range of 10 … 30 VDC, offering Light / dark operate functionality with a Push-pull output circuit capable of handling up to 50 mA of output current. Measuring 8 mm in width and 25.1 mm in height, the compact Rectangular design is housed in durable Plastic (ASA, PMMA) materials. The connection is made via a Cable 4 pin, 2 m. Unlock Exclusive Pricing with a Quote for your requirement of Baumer Sensor In Protective Housing Material. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
