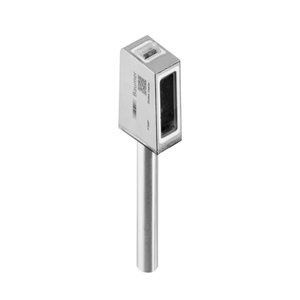

O300H.GP-GW1J.PVCV: 11127745 - Baumer Advanced Sensor With Light/Dark On Operate Function
Technical Specifications of Baumer Advanced Sensor With Light/Dark On Operate Function O300H.GP-GW1J.PVCV 11127745:
Spec | Value |
---|---|
Sensing distance Tw | 30 … 200 mm |
Sensing range Tb | 15 … 200 mm |
Output circuit | Push-pull |
Connection types | Cable 4 pin, 2 m |
Baumer Advanced Sensor With Light/Dark On Operate Function O300H.GP-GW1J.PVCV, 11127745 Technical Specifications:
Specification | Value |
---|---|
Type | Background suppression |
Sensing distance Tw | 30 … 200 mm |
Sensing range Tb | 15 … 200 mm |
Power on indication | LED green |
Sensing distance adjustment | Teach-in and IO-Link |
Suppression of reciprocal influence | Yes |
Alignment optical axis | < 2° |
Light source | Pulsed PinPoint LED |
Wave length | 630 nm |
Response time / release time | < 0.49 ms |
Voltage supply range +Vs | 10 … 30 VDC |
Current consumption max. (no load) | 45 mA |
Current consumption typ. | 30 mA |
Voltage drop Vd | <3 VDC |
Output function | Light / dark operate |
Output circuit | Push-pull |
Output current | 100 mA |
Short circuit protection | Yes |
Width / diameter | 16.5 mm |
Height / length | 34.6 mm |
Depth | 28.7 mm |
Design | Rectangular |
Housing material | Stainless steel 1.4404 (V4A) |
Front (optics) | PMMA |
Connection types | Cable 4 pin, 2 m |
Protection class | IP 68/69K & proTect+ |
Operating temperature | -25 … +60 °C |
Light indicator | LED yellow |
Send Your Inquiry for Baumer Advanced Sensor With Light/Dark On Operate Function O300H.GP-GW1J.PVCV part no: 11127745 with cost-effective solutions. Essential Technical Specs of O300H.GP-GW1J.PVCV, 11127745 are Background suppression Sensor, engineered for precise detection with a sensing distance (Tw) of 30 … 200 mm. The sensor features Teach-in and IO-Link adjustment for flexible setup and utilizes an Pulsed PinPoint LED light source with a wavelength of 630 nm. It boasts a fast response time of less than < 0.49 ms, and operates within a voltage supply range of 10 … 30 VDC, with a typical current consumption of 30 mA. The output function supports Light / dark operate with a Push-pull output circuit and can handle an output current of up to 100 mA. Measuring 16.5 mm in width, 34.6 mm in height, and 28.7 mm in depth, this compact Rectangular sensor is connected via a Cable 4 pin, 2 m. Capture the Best Deal with a Quote for your requirement of Baumer Advanced Sensor With Light/Dark On Operate Function. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
