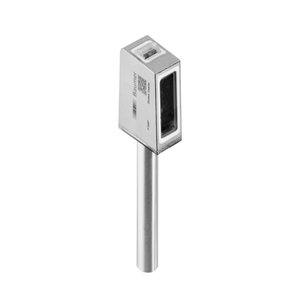

O300W.SP-GW1J.PVN: 11127758 - Baumer LED Green Smartreflective Sensor
Technical Specifications of Baumer LED Green Smartreflective Sensor O300W.SP-GW1J.PVN 11127758:
| Spec | Value |
|---|---|
| Type | Light barrier |
| Scanning range Sa | 90% ... 85% Sde |
| Output circuit | Push-pull |
| Connection types | Connector M8 4 pin |
Baumer LED Green Smartreflective Sensor O300W.SP-GW1J.PVN, 11127758 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Light barrier |
| Version | Standard object detection |
| Background position Sde | 30 … 300 mm |
| Scanning range Sa | 90% ... 85% Sde |
| Smallest object recognizable typ. | |
| Power on indication | LED green |
| Alignment / soiled lens indicator | |
| Output indicator | |
| Sensing distance adjustment | Teach-in and IO-Link |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 2° |
| Light source | Pulsed PinPoint LED |
| Wave length | 630 nm |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 45 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Width / diameter | 16.5 mm |
| Height / length | 34.7 mm |
| Depth | 28.2 mm |
| Design | Rectangular |
| Mechanical mounting | |
| Housing material | Stainless steel 1.4404 (V4A) |
| Front (optics) | PMMA |
| Connection types | Connector M8 4 pin |
| Cable characteristics | |
| Protection class | IP 68/69K & proTect+ |
| Operating temperature | -25 … +60 °C |
Get A Quote for Baumer LED Green Smartreflective Sensor O300W.SP-GW1J.PVN part no: 11127758 at the best price. Here are the brief Technical Specifications of O300W.SP-GW1J.PVN, 11127758 are Light barrier, Type offering superior precision and reliability. This sensor features a scanning range (Sa) 90% ... 85% Sde with adjustable sensing distance Teach-in and IO-Link. It operates using a Pulsed PinPoint LED light source with a wave length of 630 nm. The voltage supply range is 10 … 30 VDC, with a current consumption of 45 mA. The voltage drop (Vd) is less than <3 VDC, with Light / dark operate output functions. The output circuit is Push-pull, and the output current is rated at 100 mA. With a width of 16.5 mm and a height of 34.7 mm, the housing is made of durable Stainless steel 1.4404 (V4A). This sensor is equipped with a Connector M8 4 pin connection. It's Time to get a Quote for your requirement of Baumer LED Green Smartreflective Sensor . We guarantee unmatched pricing and unparalleled support compared to other Distributors.
