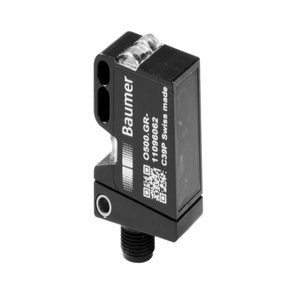

O500.SP-PV1T.72O/T003: 11135869 - Baumer Sensor With M12 Connector Type
Technical Specifications of Baumer Sensor With M12 Connector Type O500.SP-PV1T.72O/T003 11135869:
| Spec | Value |
|---|---|
| Type | Light barrier |
| Scanning range Sa | 90% ... 85% Sde |
| Output circuit | PNP complementary |
| Connection types | Connector M12 4 pin |
Baumer Sensor With M12 Connector Type O500.SP-PV1T.72O/T003, 11135869 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Light barrier |
| Version | Standard object detection |
| Background position Sde | 60 … 600 mm |
| Scanning range Sa | 90% ... 85% Sde |
| Smallest object recognizable typ. | |
| Power on indication | LED green |
| Alignment / soiled lens indicator | |
| Output indicator | |
| Sensing distance adjustment | qTeach / 1-Step Teach-in |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1° |
| Light source | Pulsed PinPoint LED |
| Wave length | 630 nm |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <3 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | 100 mA |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Design | Rectangular |
| Mechanical mounting | |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M12 4 pin |
| Cable characteristics | |
| Protection class | IP 67 |
| Operating temperature | -25 … +60 °C |
Get A Quote for Baumer Sensor With M12 Connector Type O500.SP-PV1T.72O/T003 part no: 11135869 at the best price. Here are the brief Technical Specifications of O500.SP-PV1T.72O/T003, 11135869 are Light barrier, Type offering superior precision and reliability. This sensor features a scanning range (Sa) 90% ... 85% Sde with adjustable sensing distance qTeach / 1-Step Teach-in. It operates using a Pulsed PinPoint LED light source with a wave length of 630 nm. The voltage supply range is 10 … 30 VDC, with a current consumption of 40 mA. The voltage drop (Vd) is less than <3 VDC, with Light / dark operate output functions. The output circuit is PNP complementary, and the output current is rated at 100 mA. With a width of 18 mm and a height of 45 mm, the housing is made of durable Plastic (ASA, PMMA). This sensor is equipped with a Connector M12 4 pin connection. It's Time to get a Quote for your requirement of Baumer Sensor With M12 Connector Type. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
