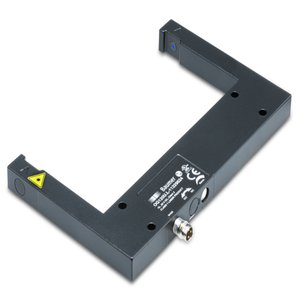

OG120U.L-GW1O.7WL: 11229524 - Baumer Photoelectric Fork Sensor In Industry
Technical Specifications of Baumer Photoelectric Fork Sensor In Industry OG120U.L-GW1O.7WL 11229524:
| Spec | Value |
|---|---|
| Type | Through beam sensor |
| Object Size | > 0.2 mm |
| Output circuit | Push-pull / IO-Link |
| Connection types | Connector M8, 3 pin |
Baumer Photoelectric Fork Sensor In Industry OG120U.L-GW1O.7WL, 11229524 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Through beam sensor |
| Object size | > 0.2 mm |
| Repeat accuracy | 0.01 mm |
| Response time / release time | < 0.1 ms |
| Hysteresis | < 0.05 mm |
| Sensitivity adjustment | Potentiometer, 270°, IO-Link |
| Light source | Pulsed red laser diode |
| Wave length | 670 nm |
| Light indicator | LED yellow |
| IO-Link | Yes |
| Interface | IO-Link V1.1 |
| Switching frequency | 5000 Hz , default, 2000 Hz, 1000 Hz, 10000 Hz |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 30 mA |
| Output function | Light / dark operate switchable |
| Output circuit | Push-pull / IO-Link |
| Voltage drop Vd | <2.8 VDC |
| Output current | 200 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 144 mm |
| Fork width Sb | 120 mm |
| Height / length | 90 mm |
| Penetration | 60 mm |
| Depth | 12 mm |
| Design | U profile |
| Housing material | Die-cast zinc |
| Connection types | Connector M8, 3 pin |
| Operating temperature | -25 … +60 °C |
| Protection class | IP 67 |
Obtain a Quote for Baumer Photoelectric Fork Sensor In Industry OG120U.L-GW1O.7WL part no: 11229524 at economical prices. Specifications Overview for OG120U.L-GW1O.7WL, 11229524 reveals Through beam sensor Type designed for precise detection in industrial applications. It features a response time of less than < 0.1 ms and hysteresis under < 0.05 mm, powered by a Pulsed red laser diode with a wavelength of 670 nm. The sensor includes a LED yellow indicator and operates at switching frequencies of 5000 Hz , default, 2000 Hz, 1000 Hz, 10000 Hz. It has a voltage supply range of 10 … 30 VDC and consumes a maximum of 30 mA when idle. The sensor supports both Light / dark operate switchable modes, utilizing a Push-pull / IO-Link output circuit with an output current of 200 mA. Designed with a U profile in Die-cast zinc, the housing measures 144 mm in width, 90 mm in height, and 12 mm in depth. It connects via an Connector M8, 3 pin. Take the First Step with a Quote for your requirement of Baumer Photoelectric Fork Sensor In Industry. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
