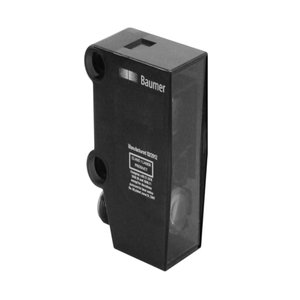

Baumer ONDK 25G6911/S14 (11079994) | Get The Best Price
Technical Specifications of Baumer Sensor For Background Position ONDK 25G6911/S14 11079994:
| Spec | Value |
|---|---|
| Type | Light barrier |
| Scanning range Sa | 97% ... 83% Sde |
| Output circuit | Push-pull |
| Connection types | Connector M12 5 pin |
Baumer Sensor For Background Position ONDK 25G6911/S14, 11079994 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Light barrier |
| Version | Standard object detection |
| Background position Sde | 100 … 1900 mm |
| Scanning range Sa | 97% ... 83% Sde |
| Smallest object recognizable typ. | |
| Power on indication | LED green |
| Alignment / soiled lens indicator | Flashing light indicator |
| Output indicator | |
| Sensing distance adjustment | Teach-in |
| Suppression of reciprocal influence | |
| Alignment optical axis | |
| Light source | Pulsed red laser diode |
| Wave length | 656 nm |
| Response time / release time | < 10 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 80 mA |
| Current consumption typ. | |
| Voltage drop Vd | <3.5 VDC |
| Output function | Light / dark operate |
| Output circuit | Push-pull |
| Output current | 100 mA |
| Width / diameter | 23.4 mm |
| Height / length | 63 mm |
| Depth | 45 mm |
| Design | Rectangular |
| Mechanical mounting | |
| Housing material | Plastic (SAN LURAN 378P) |
| Front (optics) | PMMA |
| Connection types | Connector M12 5 pin |
| Cable characteristics | |
| Protection class | IP 67 |
| Operating temperature | 0 … +50 °C |
Mail Us for your needs in Baumer Sensor For Background Position ONDK 25G6911/S14 part no: 11079994 with budget-friendly prices. The Main Technical Parameters of ONDK 25G6911/S14, 11079994 inludce Light barrier, Type offering superior precision and reliability. This sensor features a scanning range (Sa) 97% ... 83% Sde with adjustable sensing distance Teach-in. It operates using a Pulsed red laser diode light source with a wave length of 656 nm. The voltage supply range is 10 … 30 VDC, with a current consumption of 80 mA. The voltage drop (Vd) is less than <3.5 VDC, with Light / dark operate output functions. The output circuit is Push-pull, and the output current is rated at 100 mA. With a width of 23.4 mm and a height of 63 mm, the housing is made of durable Plastic (SAN LURAN 378P). This sensor is equipped with a Connector M12 5 pin connection. Customize Your Experience with a Quote for your requirement of Baumer Sensor For Background Position. Experience the difference with our competitive pricing and superior support over other Suppliers.
