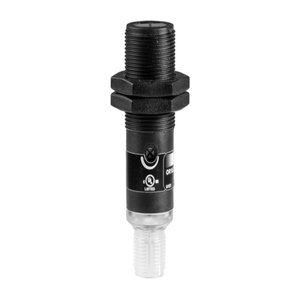

OR18.ZI-NW1Z.71CV/B013: 11157798 - Baumer High Accuracy Sensor For Industrial Use
Technical Specifications of Baumer High Accuracy Sensor For Industrial Use OR18.ZI-NW1Z.71CV/B013 11157798:
| Spec | Value |
|---|---|
| Sensing distance Tw | < 300 mm |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Connection types | Cable 4 pin, 2 m |
Baumer High Accuracy Sensor For Industrial Use OR18.ZI-NW1Z.71CV/B013, 11157798 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Intensity difference |
| Sensing distance Tw | < 300 mm |
| Sensing distance adjustment | No |
| Light source | Pulsed infrared diode |
| Wave length | 880 nm |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | 100 mA |
| Width / diameter | 18 mm |
| Height / length | 44.8 mm |
| Design | Cylindrical threaded |
| Housing material | Plastic (ABS TERLURAN) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Protection class | IP 67 |
| Operating temperature | -25 … +55 °C |
| Alignment / soiled lens indicator | LED green |
| Output indicator | LED yellow |
Reach Us by Email for Baumer High Accuracy Sensor For Industrial Use OR18.ZI-NW1Z.71CV/B013 part no: 11157798 at Discounted Rates. Key Technical Features of OR18.ZI-NW1Z.71CV/B013, 11157798 are Intensity difference Sensor, engineered for precise detection with a sensing distance of < 300 mm. The sensor utilizes a Pulsed infrared diode with a wavelength of 880 nm, ensuring accurate and rapid response times of less than < 1 ms. It operates within a voltage supply range of 12 … 30 VDC, offering Light / dark operate functionality with a NPN output circuit capable of handling up to 100 mA of output current. Measuring 18 mm in width and 44.8 mm in height, the compact Cylindrical threaded design is housed in durable Plastic (ABS TERLURAN) materials. The connection is made via a Cable 4 pin, 2 m. Navigate Your Needs with a Quote for your requirement of Baumer High Accuracy Sensor For Industrial Use. Our pricing and support are unrivaled, especially when compared to other Competitors.
