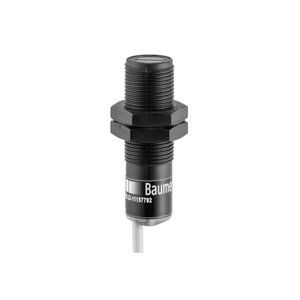

OR18.ZI-NW1Z.71OV/0010_B013: 11157799 - Baumer Industrial Sensor For Precision Sensing
Technical Specifications of Baumer Industrial Sensor For Precision Sensing OR18.ZI-NW1Z.71OV/0010_B013 11157799:
| Spec | Value |
|---|---|
| Sensing distance Tw | < 300 mm |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Connection types | Flylead connector M12 4 pin, L=100 mm |
Baumer Industrial Sensor For Precision Sensing OR18.ZI-NW1Z.71OV/0010_B013, 11157799 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Intensity difference |
| Sensing distance Tw | < 300 mm |
| Sensing distance adjustment | No |
| Light source | Pulsed infrared diode |
| Wave length | 880 nm |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | 100 mA |
| Width / diameter | 18 mm |
| Height / length | 44.8 mm |
| Design | Cylindrical threaded |
| Housing material | Plastic (ABS TERLURAN) |
| Front (optics) | PMMA |
| Connection types | Flylead connector M12 4 pin, L=100 mm |
| Protection class | IP 67 |
| Operating temperature | -25 … +55 °C |
| Alignment / soiled lens indicator | LED green |
| Output indicator | LED yellow |
Ask for the Pricing of Baumer Industrial Sensor For Precision Sensing OR18.ZI-NW1Z.71OV/0010_B013 part no: 11157799 at unbeatable prices. Detailed Specifications of OR18.ZI-NW1Z.71OV/0010_B013, 11157799 feature Intensity difference Sensor, engineered for precise detection with a sensing distance of < 300 mm. The sensor utilizes a Pulsed infrared diode with a wavelength of 880 nm, ensuring accurate and rapid response times of less than < 1 ms. It operates within a voltage supply range of 12 … 30 VDC, offering Light / dark operate functionality with a NPN output circuit capable of handling up to 100 mA of output current. Measuring 18 mm in width and 44.8 mm in height, the compact Cylindrical threaded design is housed in durable Plastic (ABS TERLURAN) materials. The connection is made via a Flylead connector M12 4 pin, L=100 mm. Now's the Time to Secure a Quote for your requirement of Baumer Industrial Sensor For Precision Sensing. We're committed to offering more favorable pricing and more responsive support than other Traders.
