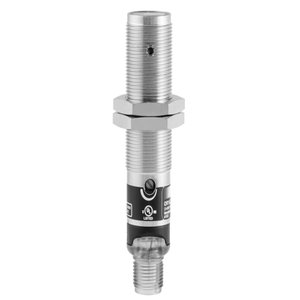

OR18.ZL-PV1P.7BCV/B013: 11157803 - Baumer Precision Sensor For Light Intensity
Technical Specifications of Baumer Precision Sensor For Light Intensity OR18.ZL-PV1P.7BCV/B013 11157803:
| Spec | Value |
|---|---|
| Sensing distance Tw | 10 … 300 mm |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Connection types | Cable 4 pin, 2 m |
Baumer Precision Sensor For Light Intensity OR18.ZL-PV1P.7BCV/B013, 11157803 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Intensity difference |
| Sensing distance Tw | 10 … 300 mm |
| Power on indication | LED green |
| Sensing distance adjustment | Potentiometer, 270° |
| Distance to focus | 100 mm |
| Light source | Pulsed red laser diode |
| Laser class | 1 |
| Wave length | 630 nm |
| Response time / release time | < 0.34 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 45 mA |
| Current consumption typ. | 35 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | 100 mA |
| Width / diameter | 18 mm |
| Height / length | 77 mm |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Protection class | IP 67 |
| Operating temperature | -10 … +55 °C |
| Output indicator | LED yellow |
Get A Quote for Baumer Precision Sensor For Light Intensity OR18.ZL-PV1P.7BCV/B013 part no: 11157803 at the best price. Here are the brief Technical Specifications of OR18.ZL-PV1P.7BCV/B013, 11157803 are Intensity difference Sensor, engineered for precise detection with a sensing distance of 10 … 300 mm. The sensor utilizes a Pulsed red laser diode with a wavelength of 630 nm, ensuring accurate and rapid response times of less than < 0.34 ms. It operates within a voltage supply range of 10 … 30 VDC, offering Light / dark operate functionality with a PNP complementary output circuit capable of handling up to 100 mA of output current. Measuring 18 mm in width and 77 mm in height, the compact Cylindrical threaded design is housed in durable Brass nickel plated materials. The connection is made via a Cable 4 pin, 2 m. It's Time to get a Quote for your requirement of Baumer Precision Sensor For Light Intensity. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
