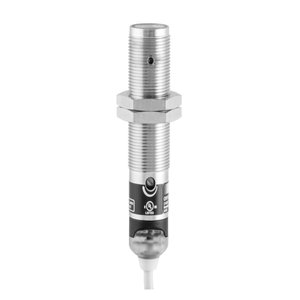

OR18W.ZI-NW1P.9VO/B013: 11157848 - Baumer Photoelectric Sensor With NPN Output
Technical Specifications of Baumer Photoelectric Sensor With NPN Output OR18W.ZI-NW1P.9VO/B013 11157848:
| Spec | Value |
|---|---|
| Sensing distance Tw | < 300 mm |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Connection types | Connector M12 4 pin |
Baumer Photoelectric Sensor With NPN Output OR18W.ZI-NW1P.9VO/B013, 11157848 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Intensity difference |
| Sensing distance Tw | < 300 mm |
| Sensing distance adjustment | Potentiometer, 270° |
| Light source | Pulsed infrared diode |
| Wave length | 880 nm |
| Response time / release time | < 1 ms |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | <2 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | 100 mA |
| Width / diameter | 18 mm |
| Height / length | 67.2 mm |
| Design | Cylindrical threaded |
| Housing material | Stainless steel 1.4404 (V4A) |
| Front (optics) | PMMA |
| Connection types | Connector M12 4 pin |
| Protection class | IP 67/69K |
| Operating temperature | -25 … +55 °C |
| Alignment / soiled lens indicator | LED green |
| Output indicator | LED yellow |
Mail Us for your needs in Baumer Photoelectric Sensor With NPN Output OR18W.ZI-NW1P.9VO/B013 part no: 11157848 with budget-friendly prices. The Main Technical Parameters of OR18W.ZI-NW1P.9VO/B013, 11157848 inludce Intensity difference Sensor, engineered for precise detection with a sensing distance of < 300 mm. The sensor utilizes a Pulsed infrared diode with a wavelength of 880 nm, ensuring accurate and rapid response times of less than < 1 ms. It operates within a voltage supply range of 12 … 30 VDC, offering Light / dark operate functionality with a NPN output circuit capable of handling up to 100 mA of output current. Measuring 18 mm in width and 67.2 mm in height, the compact Cylindrical threaded design is housed in durable Stainless steel 1.4404 (V4A) materials. The connection is made via a Connector M12 4 pin. Customize Your Experience with a Quote for your requirement of Baumer Photoelectric Sensor With NPN Output. Experience the difference with our competitive pricing and superior support over other Suppliers.
